140 mm 100 mm 150 mm 150 mm 150 mm FIGURE Q2(b) 150 mm As shown in Figure Q2(b), a concrete floor slab is reinforced by

Post by **answerhappygod** » Mon Jul 11, 2022 10:12 am

: 140 Mm 100 Mm 150 Mm 150 Mm 150 Mm Figure Q2 B 150 Mm As Shown In Figure Q2 B A Concrete Floor Slab Is Reinforced By 1 (313.26 KiB) Viewed 25 times

: 140 Mm 100 Mm 150 Mm 150 Mm 150 Mm Figure Q2 B 150 Mm As Shown In Figure Q2 B A Concrete Floor Slab Is Reinforced By 2 (135.71 KiB) Viewed 25 times

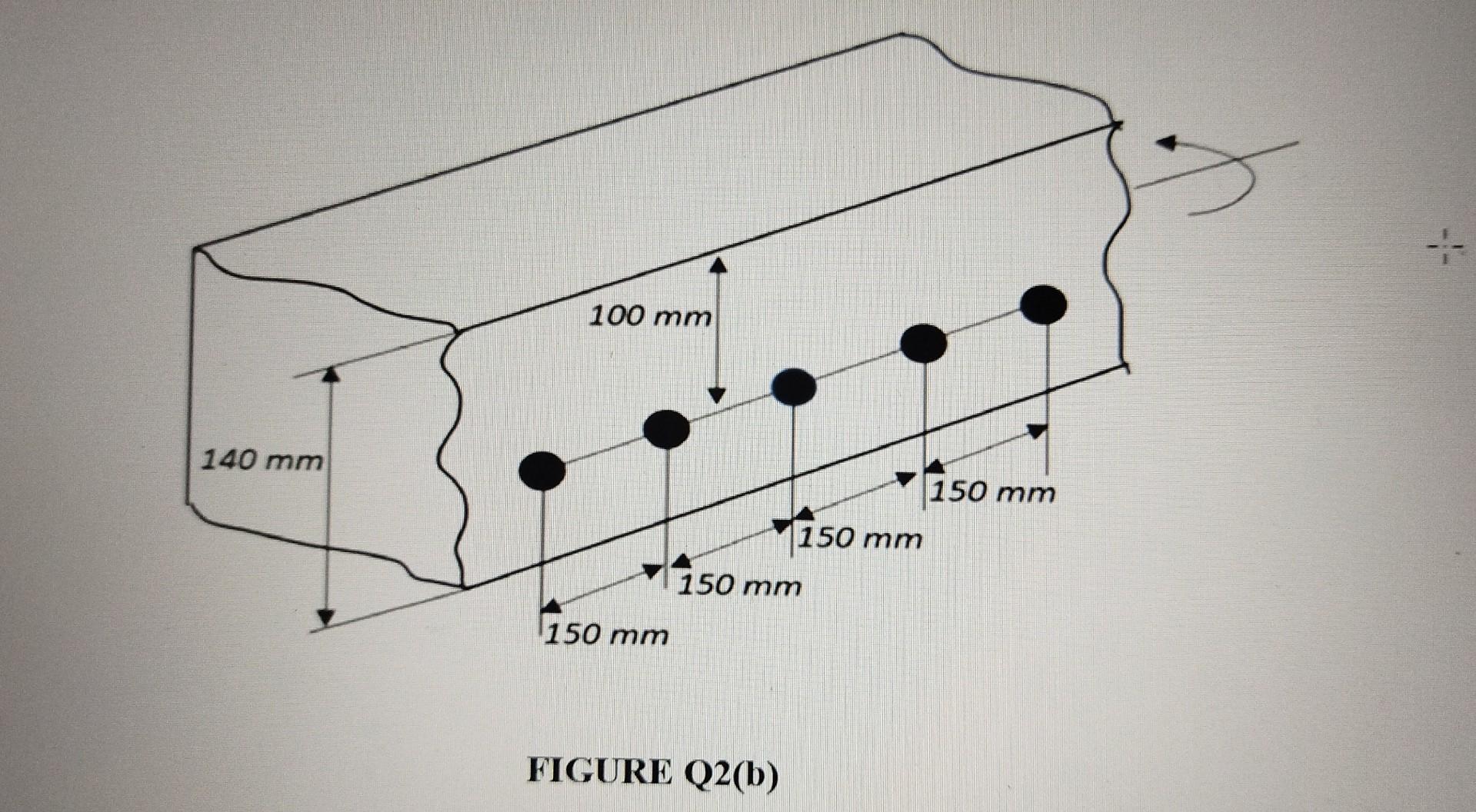

140 mm 100 mm 150 mm 150 mm 150 mm FIGURE Q2(b) 150 mm

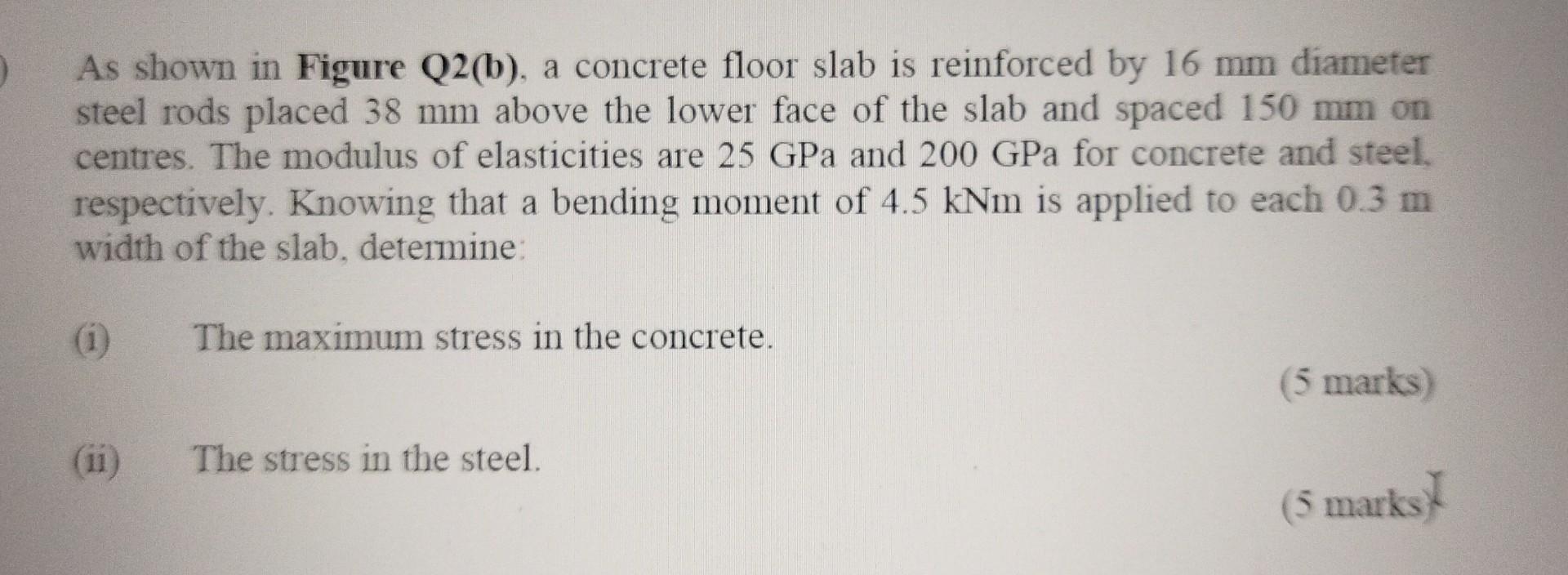

As shown in Figure Q2(b), a concrete floor slab is reinforced by 16 mm diameter steel rods placed 38 mm above the lower face of the slab and spaced 150 mm on centres. The modulus of elasticities are 25 GPa and 200 GPa for concrete and steel, respectively. Knowing that a bending moment of 4.5 kNm is applied to each 0.3 m width of the slab, determine: (1) The maximum stress in the concrete. The stress in the steel. (5 marks) (5 marks)
