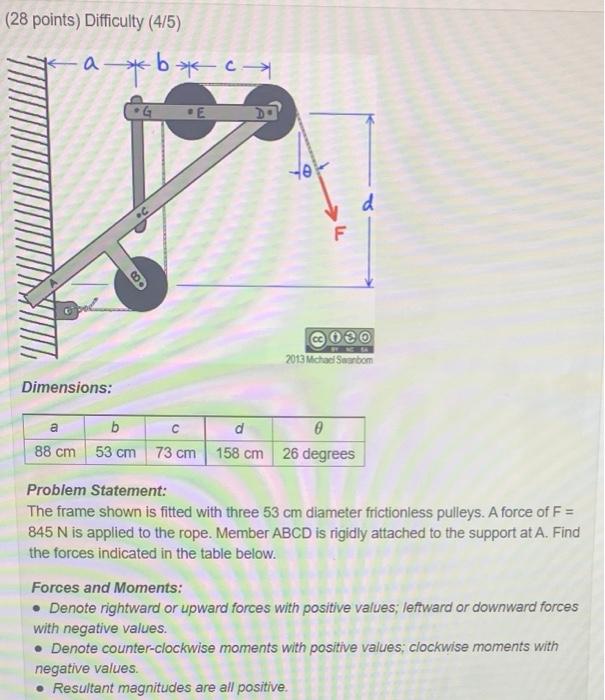

(28 points) Difficulty (4/5) a- -а-ож с. G Dimensions: a 88 cm E D F d 030 PMA 2013 Michael Saanbom b C d 0 53 cm 73 cm 158 cm 26 degrees Problem Statement: The frame shown is fitted with three 53 cm diameter frictionless pulleys. A force of F = 845 N is applied to the rope. Member ABCD is rigidly attached to the support at A. Find the forces indicated in the table below. Forces and Moments: Denote rightward or upward forces with positive values; leftward or downward forces with negative values. • Denote counter-clockwise moments with positive values; clockwise moments with negative values. • Resultant magnitudes are all positive.

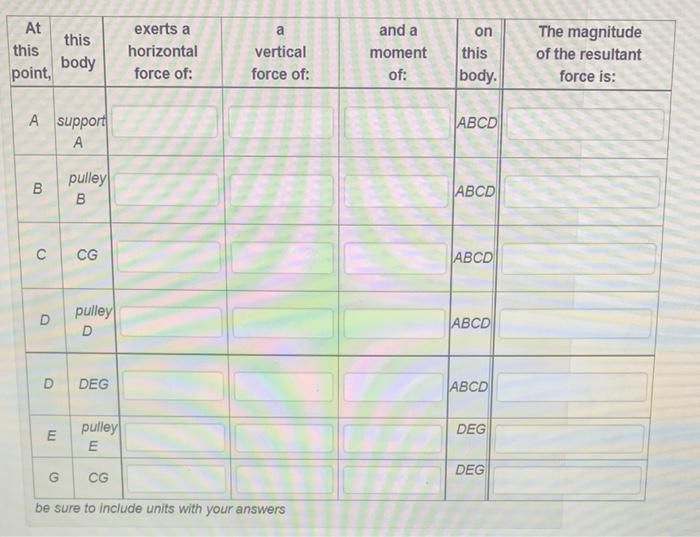

At this point, A support A B C D D this body E G pulley B CG pulley D DEG pulley E CG exerts a horizontal force of: a vertical force of: be sure to include units with your answers and a moment of: on this body. ABCD ABCD ABCD ABCD ABCD DEG DEG The magnitude of the resultant force is:
