Problem 5 (20 points) (a) Determine the reaction forces at A (Pin Support) and B (Roller Support) given the loaded beam

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Problem 5 (20 points) (a) Determine the reaction forces at A (Pin Support) and B (Roller Support) given the loaded beam

Post by answerhappygod »

Problem 5 20 Points A Determine The Reaction Forces At A Pin Support And B Roller Support Given The Loaded Beam 1
Problem 5 20 Points A Determine The Reaction Forces At A Pin Support And B Roller Support Given The Loaded Beam 1 (147.61 KiB) Viewed 52 times

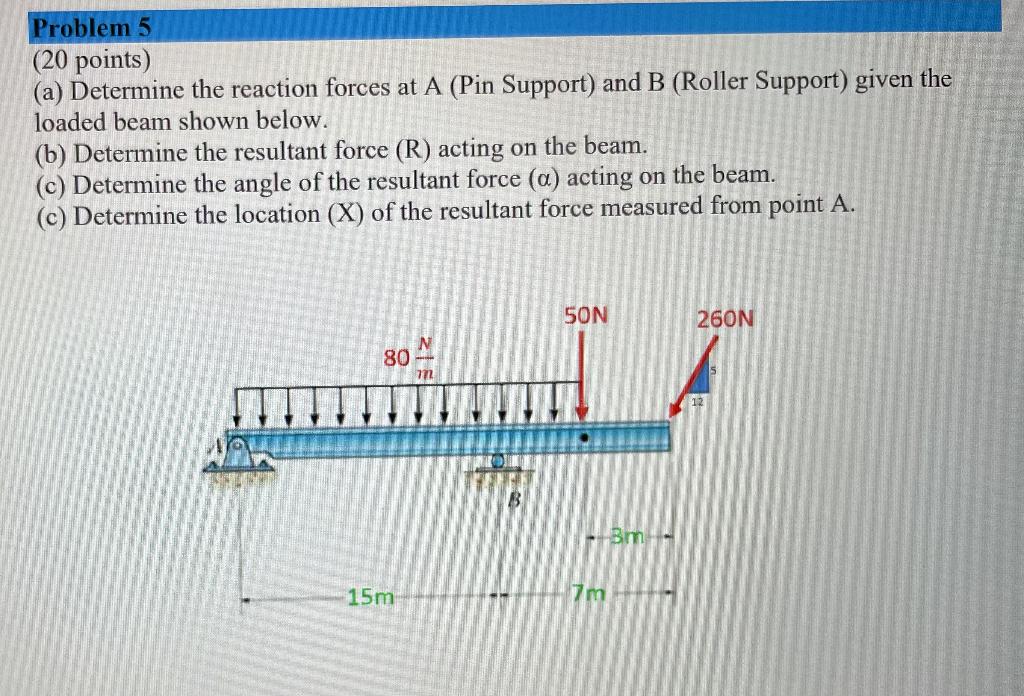

Problem 5 (20 points) (a) Determine the reaction forces at A (Pin Support) and B (Roller Support) given the loaded beam shown below. (b) Determine the resultant force (R) acting on the beam. (c) Determine the angle of the resultant force (a) acting on the beam. (c) Determine the location (X) of the resultant force measured from point A. 80 15m N 777 B 50N -5m- 7m 260N 12
