Problem #3 (25 points) (a) Determine the reaction forces at D (Pin Support) and E (Roller Support) given the truss syste

Post by answerhappygod »

Problem 3 25 Points A Determine The Reaction Forces At D Pin Support And E Roller Support Given The Truss Syste 1
Problem 3 25 Points A Determine The Reaction Forces At D Pin Support And E Roller Support Given The Truss Syste 1 (125.02 KiB) Viewed 32 times

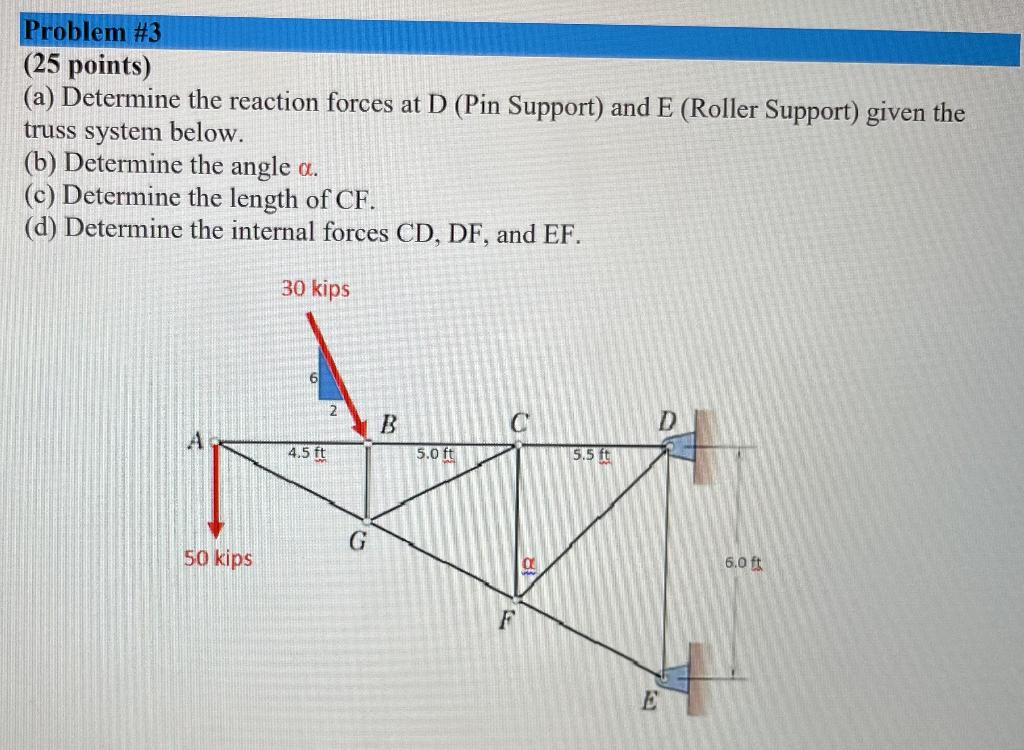

Problem #3 (25 points) (a) Determine the reaction forces at D (Pin Support) and E (Roller Support) given the truss system below. (b) Determine the angle a. (c) Determine the length of CF. (d) Determine the internal forces CD, DF, and EF. 30 kips 50 kips 4.5 ft 2 G B 5.0 ft C F a 5.5 ft D E 6.0 ft
