The simply supported beam consists of a W530 × 66 structural steel wide-flange shape [E = 200 GPa; 1 = 351 × 106 mm4]. D

Post by answerhappygod »

The Simply Supported Beam Consists Of A W530 66 Structural Steel Wide Flange Shape E 200 Gpa 1 351 106 Mm4 D 1
The Simply Supported Beam Consists Of A W530 66 Structural Steel Wide Flange Shape E 200 Gpa 1 351 106 Mm4 D 1 (20.71 KiB) Viewed 21 times

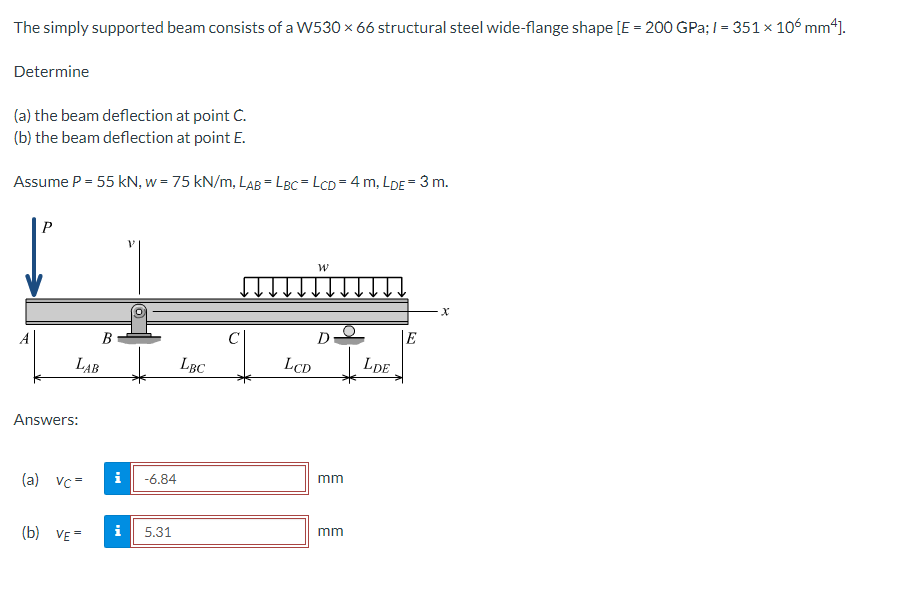

The simply supported beam consists of a W530 × 66 structural steel wide-flange shape [E = 200 GPa; 1 = 351 × 106 mm4]. Determine (a) the beam deflection at point C. (b) the beam deflection at point E. Assume P = 55 kN, w = 75 kN/m, LAB=LBC = LCD= 4 m, LDE = 3 m. P B LAB Answers: (a) Vc= (b) VE= i -6.84 i 5.31 LBC LCD W D mm mm LDE E X
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
