Q4 Solid waste to be compacted The figure below shows the proposed design for a hydraulic press used to compact the conn

Post by answerhappygod »

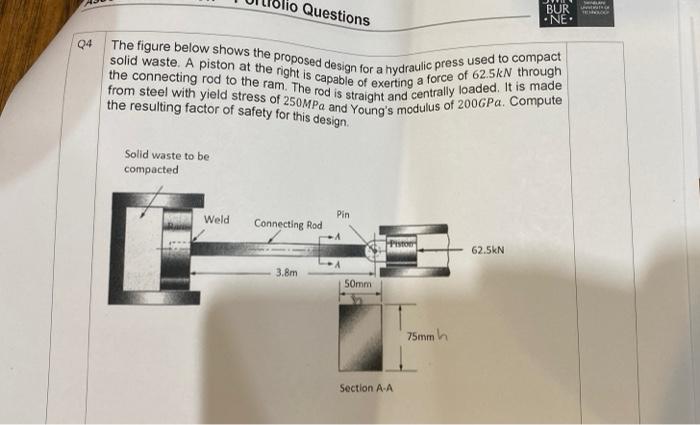

Q4 Solid Waste To Be Compacted The Figure Below Shows The Proposed Design For A Hydraulic Press Used To Compact The Conn 1
Q4 Solid Waste To Be Compacted The Figure Below Shows The Proposed Design For A Hydraulic Press Used To Compact The Conn 1 (34.04 KiB) Viewed 27 times
Q4 Solid waste to be compacted The figure below shows the proposed design for a hydraulic press used to compact the connecting rod to the ram. The rod is straight and centrally loaded. It is made solid waste. A piston at the right is capable of exerting a force of 62.5kN through from steel with yield stress of 250MPa and Young's modulus of 200GPa. Compute the resulting factor of safety for this design. Weld Questions Connecting Rod 3.8m Pin 50mm Piston Section A-A 75mm h SA BUR Un MONOCO .NE. 62.5kN
