Assessment - Knowledge Questions A branch of tree has the approximate as shown in figure below. having a mass of 135 kg

Post by answerhappygod »

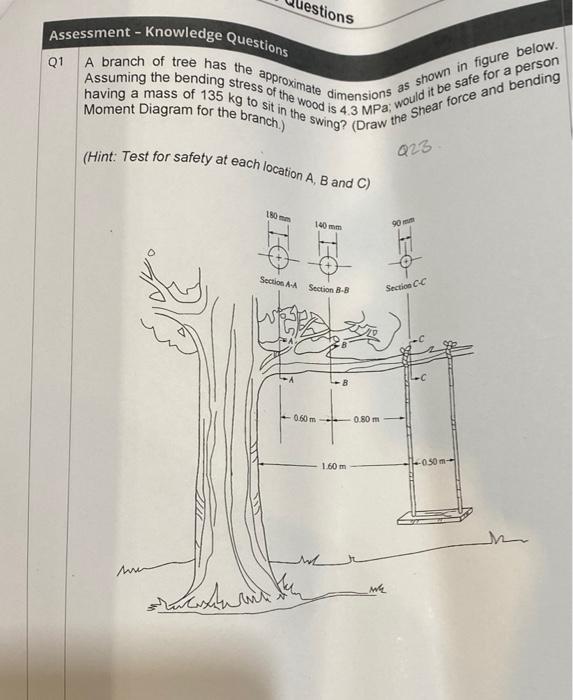

Assessment Knowledge Questions A Branch Of Tree Has The Approximate As Shown In Figure Below Having A Mass Of 135 Kg 1
Assessment Knowledge Questions A Branch Of Tree Has The Approximate As Shown In Figure Below Having A Mass Of 135 Kg 1 (48.17 KiB) Viewed 33 times
Assessment - Knowledge Questions A branch of tree has the approximate as shown in figure below. having a mass of 135 kg to sit in the swing? (Draw the Shear force and bending Assuming the bending stress of the wood is 4.3 MPa; would it be safe for a person dimensions Moment Diagram for the branch.) Q23. Q1 (Hint: Test for safety at each location A, B and C) we estions 180 mm case wit 140 mm TO Section A-A Section 8-B 0.60m- 1.60 m 0.80 m 90mm Section C-C ME LC 11-0.50m
