The truss is supported by a pin at A and a rocker at E. Please determine the force in all members around Joint C. Pleas

Post by answerhappygod »

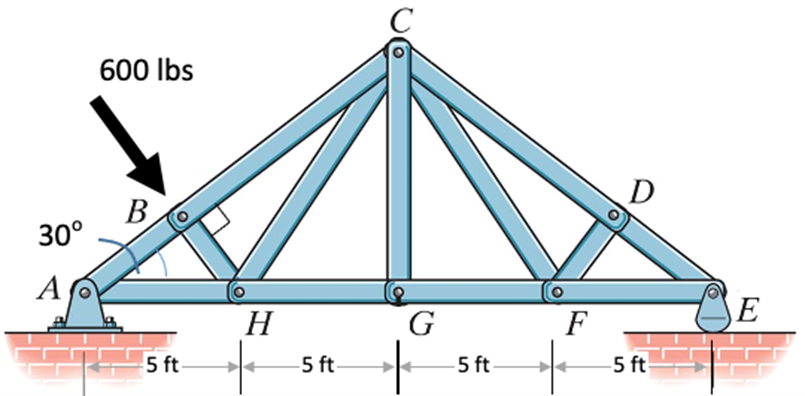

The truss is supported by a pin at A and a rocker atE. Please determine the force in all members around Joint C.Please write all equilibrium equations and clearly indicate if thetruss members are in tension or compression.
The Truss Is Supported By A Pin At A And A Rocker At E Please Determine The Force In All Members Around Joint C Pleas 1
The Truss Is Supported By A Pin At A And A Rocker At E Please Determine The Force In All Members Around Joint C Pleas 1 (208.02 KiB) Viewed 20 times
30° A 600 lbs B 5 ft H -5 ft G -5 ft F D -5 ft E
