Design a fillet welded lap joint between two plates of size 150 mm × 8 mm and 150 mm x 12 mm as shown in Fig. 2.21. The

[answerhappygod]

Design A Fillet Welded Lap Joint Between Two Plates Of Size 150 Mm 8 Mm And 150 Mm X 12 Mm As Shown In Fig 2 21 The 1 (23.87 KiB) Viewed 34 times

design the joint correct answer reqd

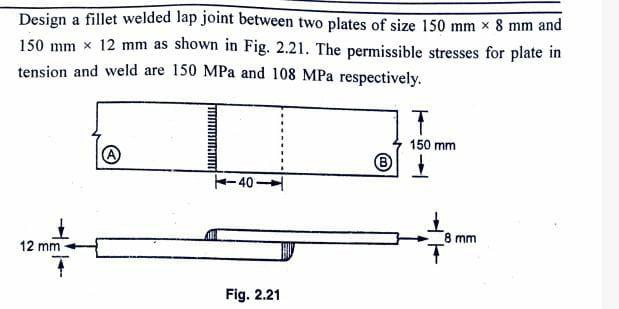

Design a fillet welded lap joint between two plates of size 150 mm × 8 mm and 150 mm x 12 mm as shown in Fig. 2.21. The permissible stresses for plate in tension and weld are 150 MPa and 108 MPa respectively. 12 mm A -40- Fig. 2.21 B 150 mm 8 mm
