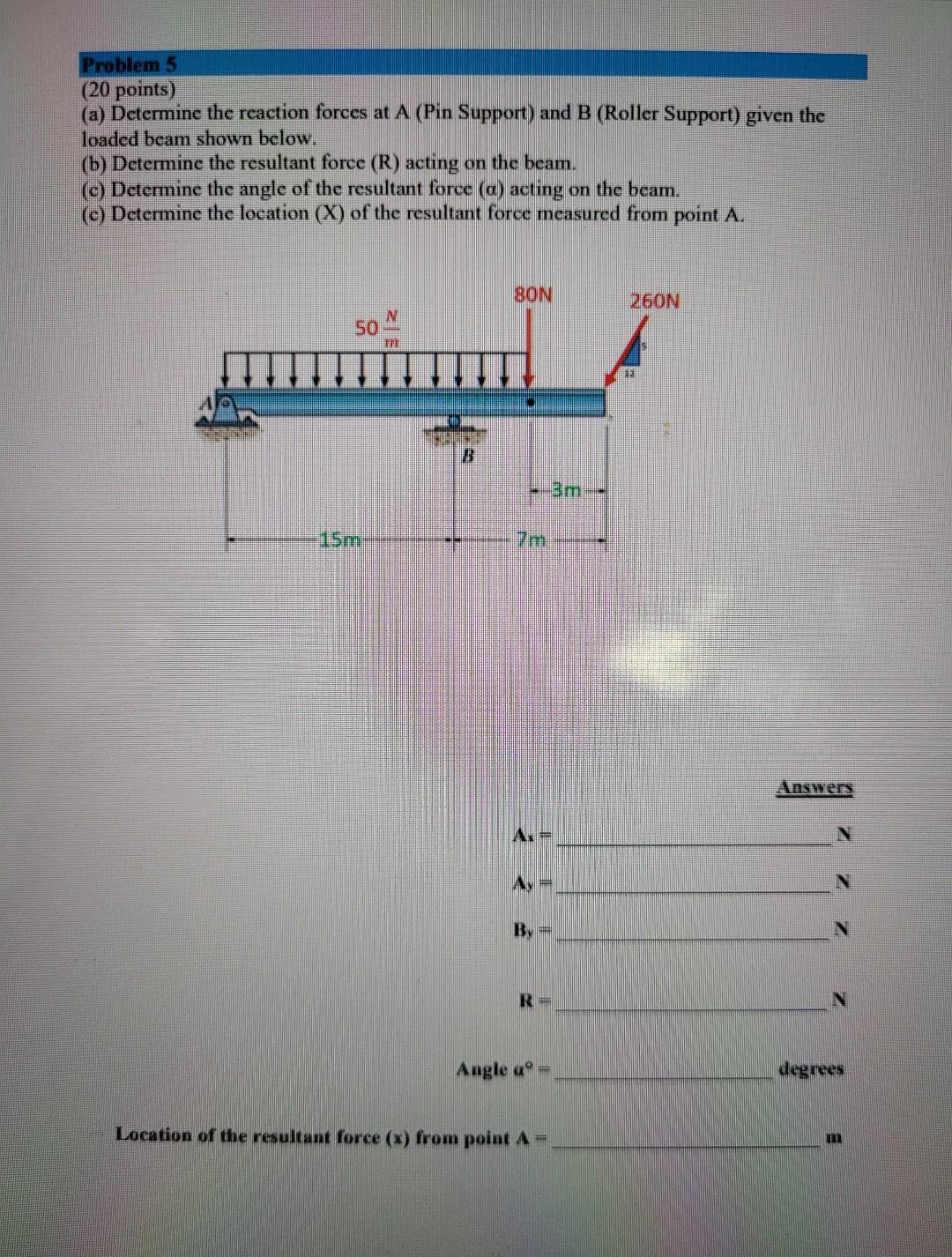

(20 Points) (a) Determine the reaction forces at A (Pin Support) and B (Roller Support) given the loaded beam shown below. (b) Determine the resultant force (R) acting on the beam.(c) Determine the angle of the resultant force (a) acting on the beam.(c) Determine the location (X) of the resultant force measured from Point A.
Problem 5 (20 points) (a) Determine the reaction forces at A (Pin Support) and B (Roller Support) given the loaded beam shown below. (b) Determine the resultant force (R) acting on the beam. (c) Determine the angle of the resultant force (a) acting on the beam. (c) Determine the location (X) of the resultant force measured from point A. 50 15m N PPL BON 7m Av= 3m By= R= Angle aº = Location of the resultant force (x) from point A - 260N Answers degrees m
