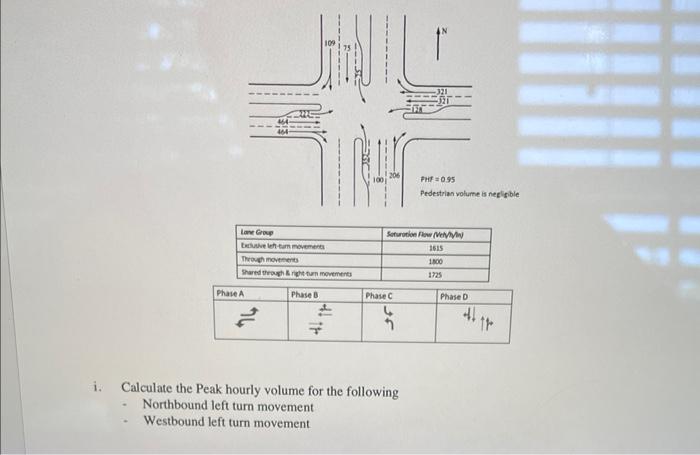

. Tidur Lone Group Exclusive left-tum movements Through movements Shared through & right turn movements Phase A Phase B 46 14 Phase C Saturation Flow (Vet 1615 1800 1725 " i. Calculate the Peak hourly volume for the following Northbound left turn movement Westbound left turn movement 321 PHF = 0.95 Pedestrian volume is negligible Phase D

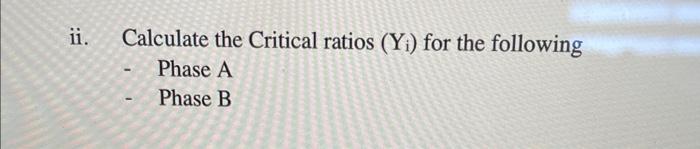

ii. Calculate the Critical ratios (Y) for the following Phase A Phase B
iii. Assume the lost time per phase is 3.0 sec and the sum of critical ratios (Y₁) of all phases = 0.784, Determine the optimum cycle length in sec (round up to nearest multiple of 5)
