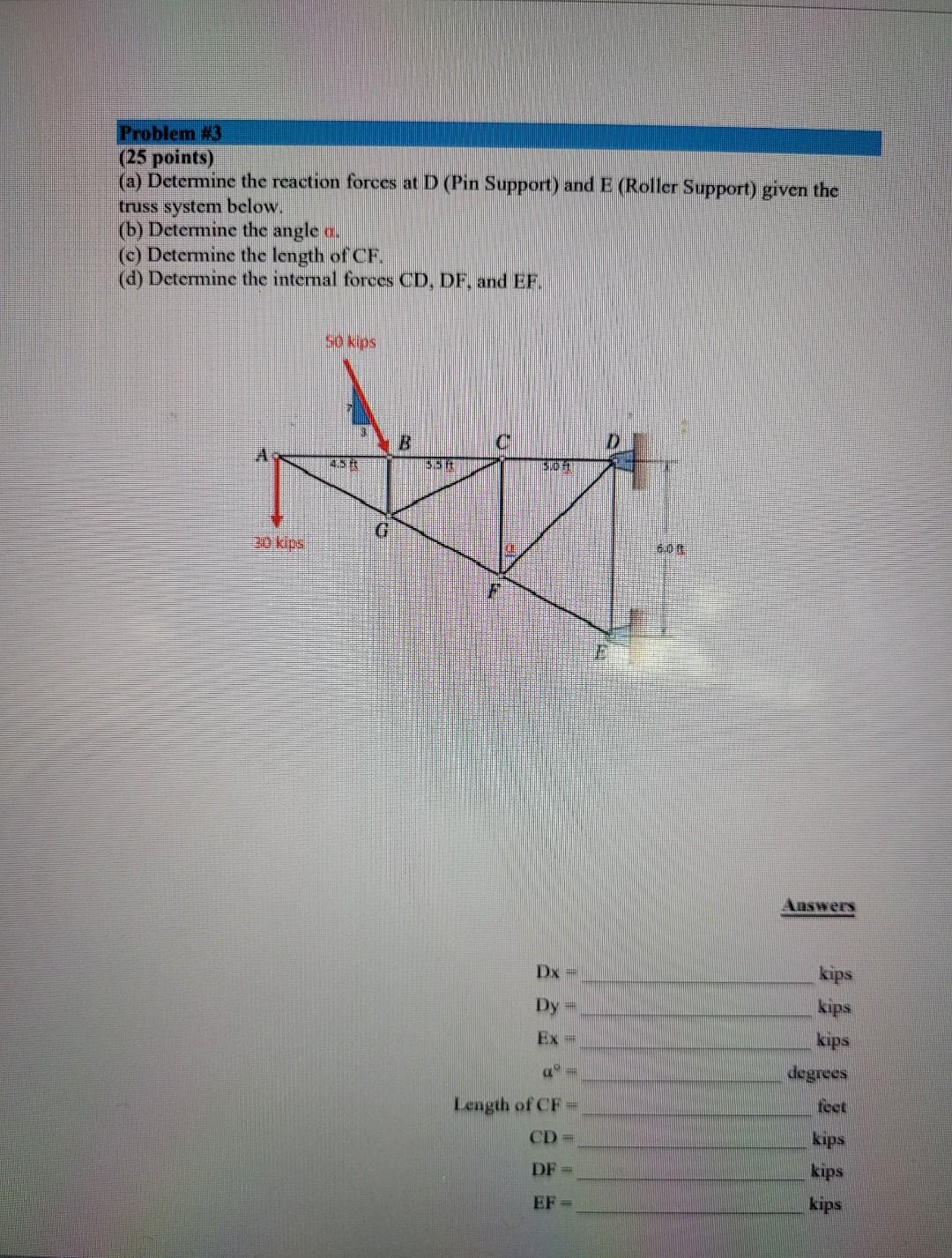

Problem 43 25 Points A Determine The Reaction Forces At D Pin Support And E Roller Support Given The Truss Syste 1 (301.79 KiB) Viewed 39 times
(25 Points)(a) Determine the reaction forces at D (Pin Support) and E (Roller Support) given the truss system below.(b) Determine angle a(c) Determine the length of CF(d) Determine the internal forces CD, DF and EF.
Problem 43 (25 points) (a) Determine the reaction forces at D (Pin Support) and E (Roller Support) given the truss system below. (b) Determine the angle a. (c) Determine the length of CF. (d) Determine the internal forces CD, DF, and EF. 30 kips 50 kips B 35H 4.5 ft 사 G F 310H Dx- Dy Ex= Length of CF= CD= DF=> EF= E Answers kips kips kips degrees feet kips kips kips
