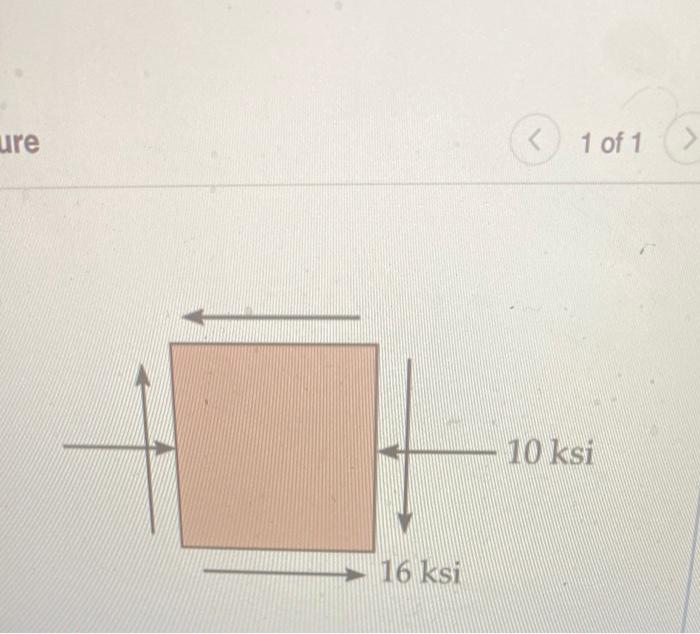

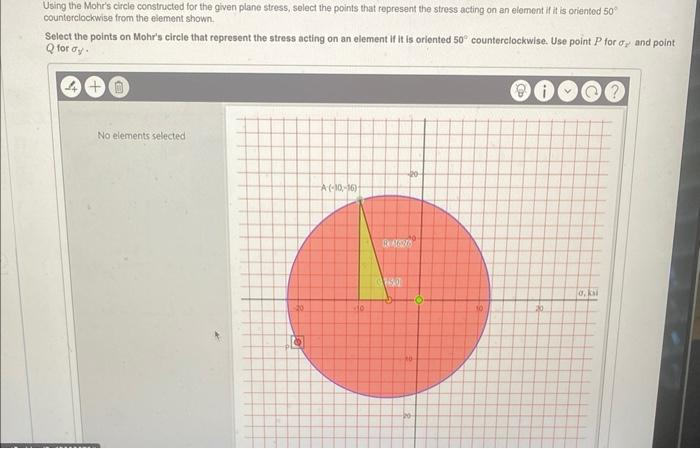

Using the Mohr's circle constructed for the given plane stress, select the points that represent the stress counterclockwise from the element shown. Select the points on Mohr's circle that represent the stress acting on an element if it is oriented 50° counterclockwise. Use point P for o and point Q for dy. No elements selected 20 A(-10-16) 10. -20 REVO 150 9 acting on an element if it is oriented 50° O 20 o, kai
