A line load of 274kN/m acts at a distance d= 4.1 m from the front face of the retaining wall having the following dimens

Post by answerhappygod »

A Line Load Of 274kn M Acts At A Distance D 4 1 M From The Front Face Of The Retaining Wall Having The Following Dimens 1
A Line Load Of 274kn M Acts At A Distance D 4 1 M From The Front Face Of The Retaining Wall Having The Following Dimens 1 (60.66 KiB) Viewed 25 times

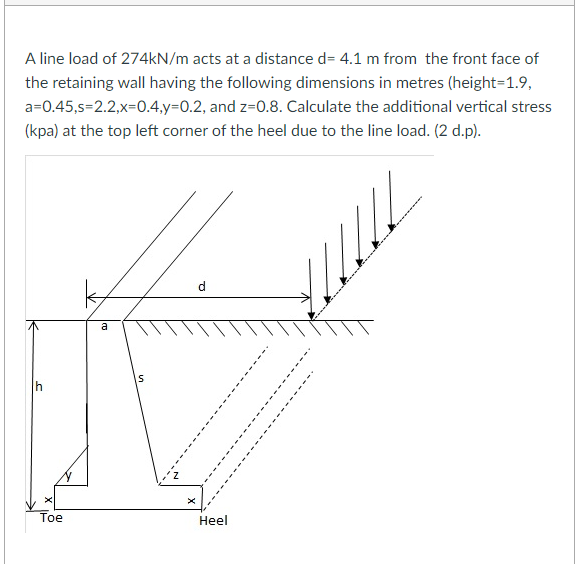

A line load of 274kN/m acts at a distance d= 4.1 m from the front face of the retaining wall having the following dimensions in metres (height=1.9, a=0.45,s=2.2,x=0.4,y=0.2, and z=0.8. Calculate the additional vertical stress (kpa) at the top left corner of the heel due to the line load. (2 d.p). S Toe a S d Heel
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
