Problem 9.44 The state of stress at a point in a member is shown on the element. Suppose o₂ = -650 psi, oy = 400 psi. (F

[answerhappygod]

Problem 9 44 The State Of Stress At A Point In A Member Is Shown On The Element Suppose O 650 Psi Oy 400 Psi F 1 (28.63 KiB) Viewed 26 times

Problem 9 44 The State Of Stress At A Point In A Member Is Shown On The Element Suppose O 650 Psi Oy 400 Psi F 2 (53.12 KiB) Viewed 26 times

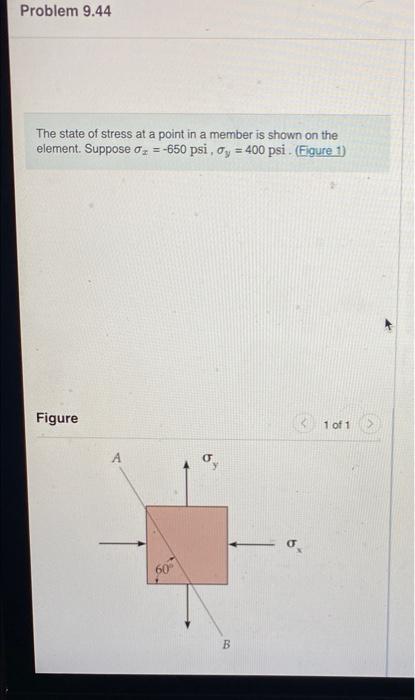

Problem 9.44 The state of stress at a point in a member is shown on the element. Suppose o₂ = -650 psi, oy = 400 psi. (Figure 1) Figure A B 1 of 1

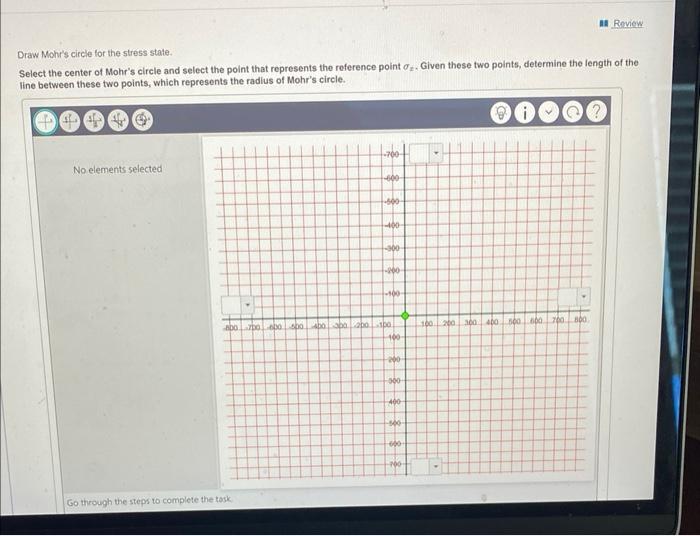

Draw Mohr's circle for the stress state. Select the center of Mohr's circle and select the point that represents the reference point o. Given these two points, determine the length of the line between these two points, which represents the radius of Mohr's circle. No elements selected +-700-1 -600- Go through the steps to complete the task --500 -400- -300- -200- -100- 800 700 600 500 400 300 200 100 $f 100 200- -000- 400 -500 600 -200+ Review 100 200 300 400 500 600 700 800.
