For the two lines of bolt holes shown in the figure, determine the pitch that will get a net area DEFG equal to the one

[answerhappygod]

For The Two Lines Of Bolt Holes Shown In The Figure Determine The Pitch That Will Get A Net Area Defg Equal To The One 1 (27.29 KiB) Viewed 34 times

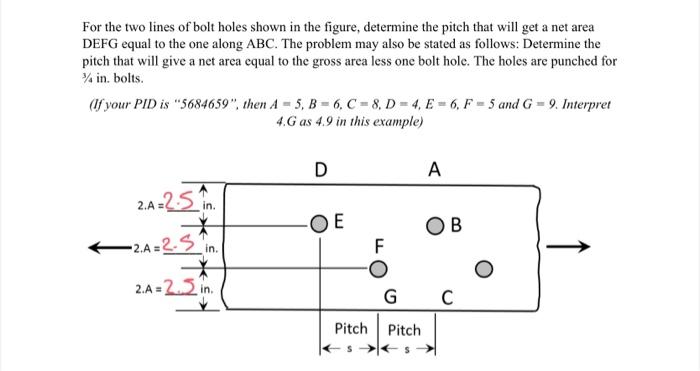

For the two lines of bolt holes shown in the figure, determine the pitch that will get a net area DEFG equal to the one along ABC. The problem may also be stated as follows: Determine the pitch that will give a net area equal to the gross area less one bolt hole. The holes are punched for ¾ in. bolts. (If your PID is "5684659", then A = 5, B = 6, C-8, D=4, E=6, F = 5 and G=9. Interpret 4.G as 4.9 in this example) 2.A=2.5 in. -2.A=2.5 in. 2.A=2.5 in. D E F A Pitch Pitch OB G C
