10-6. Determine the moments at A, B, C, and D, then draw the moment diagram for the beam. Assume the supports at A and D

Post by answerhappygod »

10 6 Determine The Moments At A B C And D Then Draw The Moment Diagram For The Beam Assume The Supports At A And D 1
10 6 Determine The Moments At A B C And D Then Draw The Moment Diagram For The Beam Assume The Supports At A And D 1 (32.7 KiB) Viewed 26 times

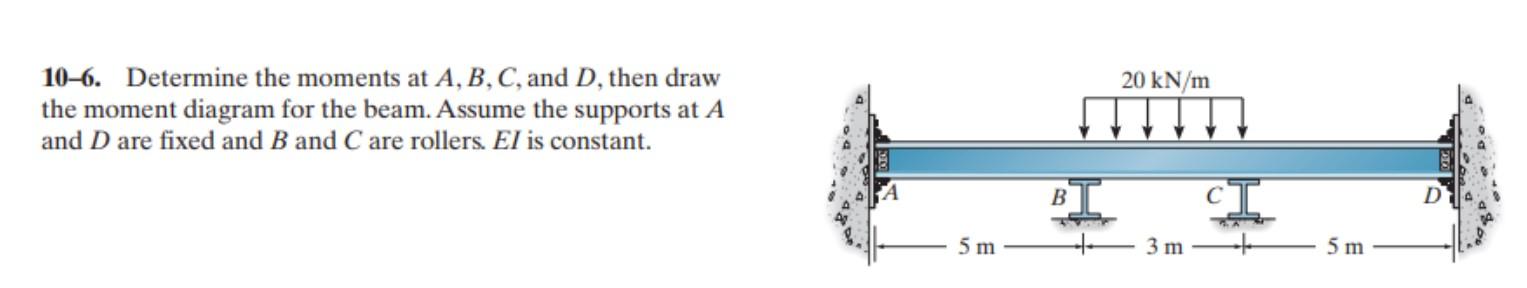

10-6. Determine the moments at A, B, C, and D, then draw the moment diagram for the beam. Assume the supports at A and D are fixed and B and C are rollers. El is constant. 5 m B 20 kN/m 3 m 5 m D
