How would you go about answering this flexural stress question?
a) Draw the Shear Force Diagram and the Bending Moment Diagram
b) Find the principal stresses and their directions
c) draw diagrams to show change in direction

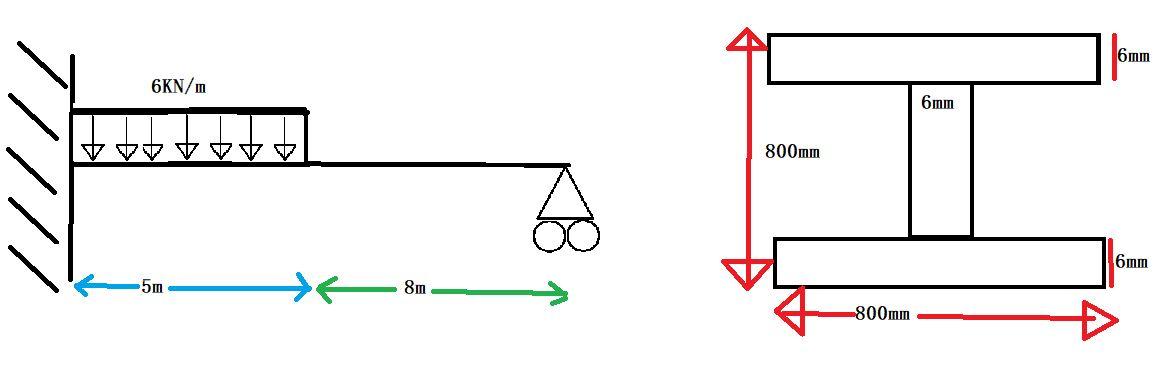

How Would You Go About Answering This Flexural Stress Question A Draw The Shear Force Diagram And The Bending Moment D 1 (33.18 KiB) Viewed 21 times
(This is a symmetrical shape. Thus the y and x axis )
6KN/m 5m VV 8m 800mm -800mm 6mm 6mm 6mm
