LEARNING ACTIVITY: 1 TITLE: ANALYSIS & DESIGN OF STRUCTURAL TIMBER BEAM PROBLEM: A 250mm X 450 mm timber beam is subject

[answerhappygod]

Learning Activity 1 Title Analysis Design Of Structural Timber Beam Problem A 250mm X 450 Mm Timber Beam Is Subject 1 (29.3 KiB) Viewed 18 times

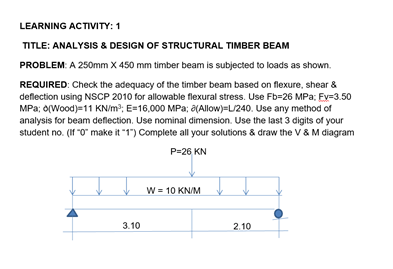

LEARNING ACTIVITY: 1 TITLE: ANALYSIS & DESIGN OF STRUCTURAL TIMBER BEAM PROBLEM: A 250mm X 450 mm timber beam is subjected to loads as shown. REQUIRED: Check the adequacy of the timber beam based on flexure, shear & deflection using NSCP 2010 for allowable flexural stress. Use Fb-26 MPa: Fy=3.50 MPa: (Wood)=11 KN/m³; E=16,000 MPa; (Allow)=L/240. Use any method of analysis for beam deflection. Use nominal dimension. Use the last 3 digits of your student no. (If "0" make it "1") Complete all your solutions & draw the V & M diagram P=26 KN 3.10 W = 10 KN/M 2.10
