2. For each structure shown, compute the reactions and draw shear and bending moment diagrams (Choose one sign conventio

[answerhappygod]

2 For Each Structure Shown Compute The Reactions And Draw Shear And Bending Moment Diagrams Choose One Sign Conventio 1 (392.52 KiB) Viewed 38 times

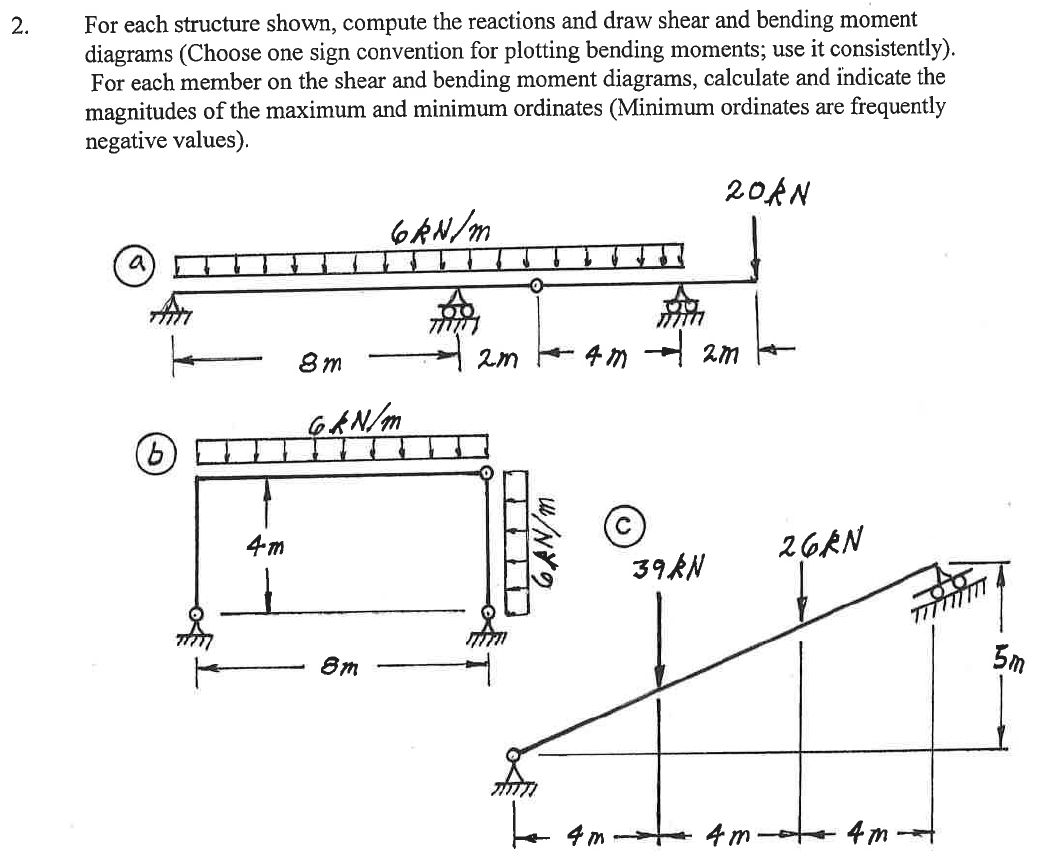

2. For each structure shown, compute the reactions and draw shear and bending moment diagrams (Choose one sign convention for plotting bending moments; use it consistently). For each member on the shear and bending moment diagrams, calculate and indicate the magnitudes of the maximum and minimum ordinates (Minimum ordinates are frequently negative values). a b 4m 8m 6kN/m 6kN/m 8m O 2m 4m 4m 20AN 2M 39 KN 26kN 4m + 4m 5m
