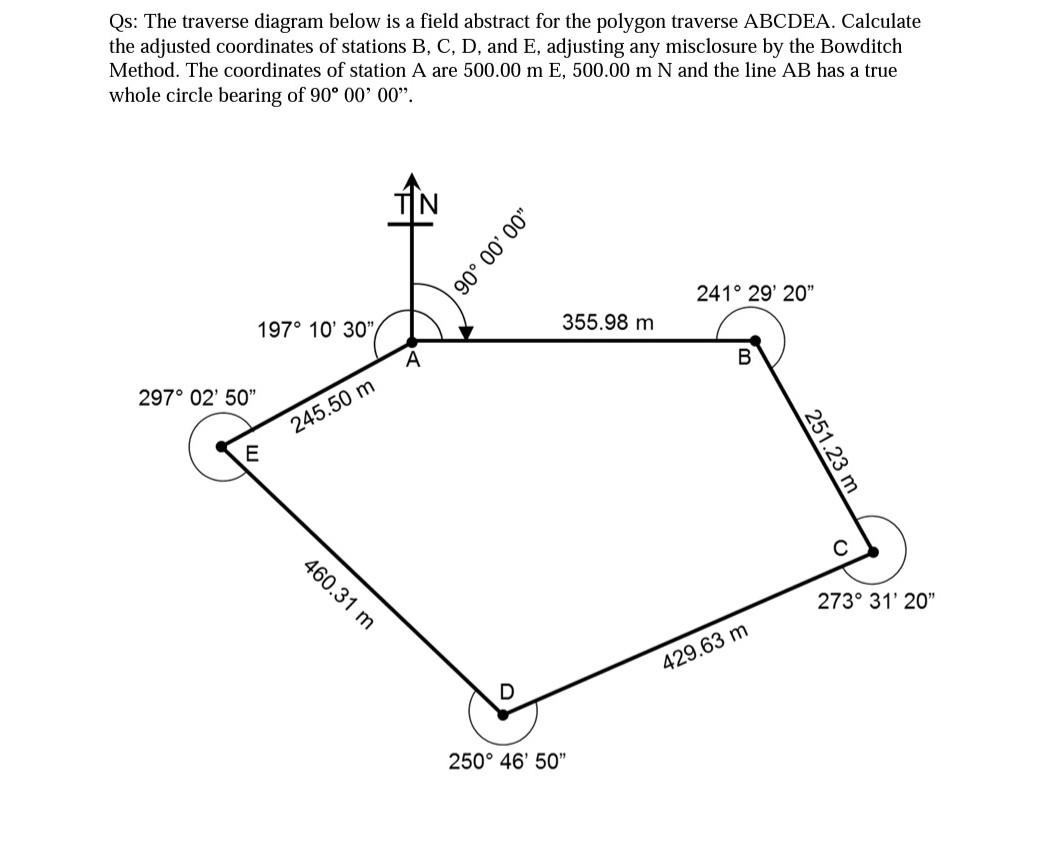

Qs: The traverse diagram below is a field abstract for the polygon traverse ABCDEA. Calculate the adjusted coordinates of stations B, C, D, and E, adjusting any misclosure by the Bowditch Method. The coordinates of station A are 500.00 m E, 500.00 m N and the line AB has a true whole circle bearing of 90° 00' 00". 297° 02' 50" 197° 10' 30" E 245.50 m 460.31 m D 90° 00'00" 355.98 m 250° 46' 50" 241° 29' 20" B 429.63 m 251.23 273° 31' 20"

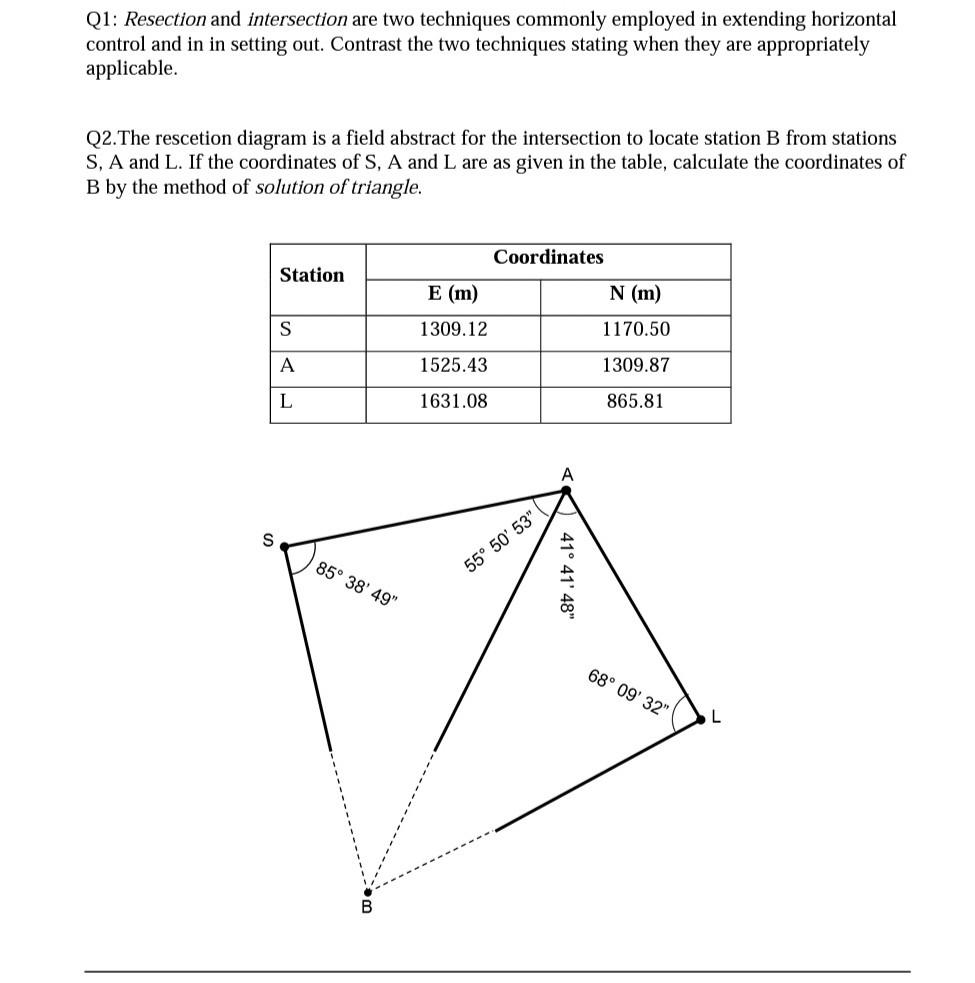

Q1: Resection and intersection are two techniques commonly employed in extending horizontal control and in in setting out. Contrast the two techniques stating when they are appropriately applicable. Q2. The rescetion diagram is a field abstract for the intersection to locate station B from stations S, A and L. If the coordinates of S, A and L are as given in the table, calculate the coordinates of B by the method of solution of triangle. S Station S A L 85° 38' 49" E (m) 1309.12 1525.43 1631.08 Coordinates 55° 50' 53" A 41° 41' 48" N (m) 1170.50 1309.87 865.81 68° 09' 32"
