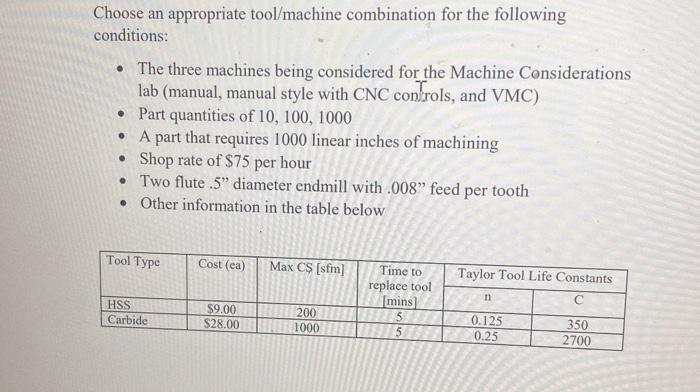

Choose an appropriate tool/machine combination for the following conditions: • The three machines being considered for the Machine Considerations lab (manual, manual style with CNC controls, and VMC) • Part quantities of 10, 100, 1000 ● A part that requires 1000 linear inches of machining • Shop rate of $75 per hour • Two flute .5" diameter endmill with .008" feed per tooth • Other information in the table below Tool Type HSS Carbide Cost (ea) $9.00 $28.00 Max CS [sfm] 200 1000 Time to replace tool [mins] 5 5 Taylor Tool Life Constants C n 0.125 0.25 350 2700
Cost per workpart Vmin Cutting speed Total cost per piece Cost of time to replace tool Tool cost Part handling time cost Machining time cost
