- Modeling Assignment 4 Create An Engineering Drawing Of The Model Shown Below Units In Inches If There Are Any Dime 1 (236.26 KiB) Viewed 24 times
Please only use CREO 7.0 and follow all criteria andinstructions!

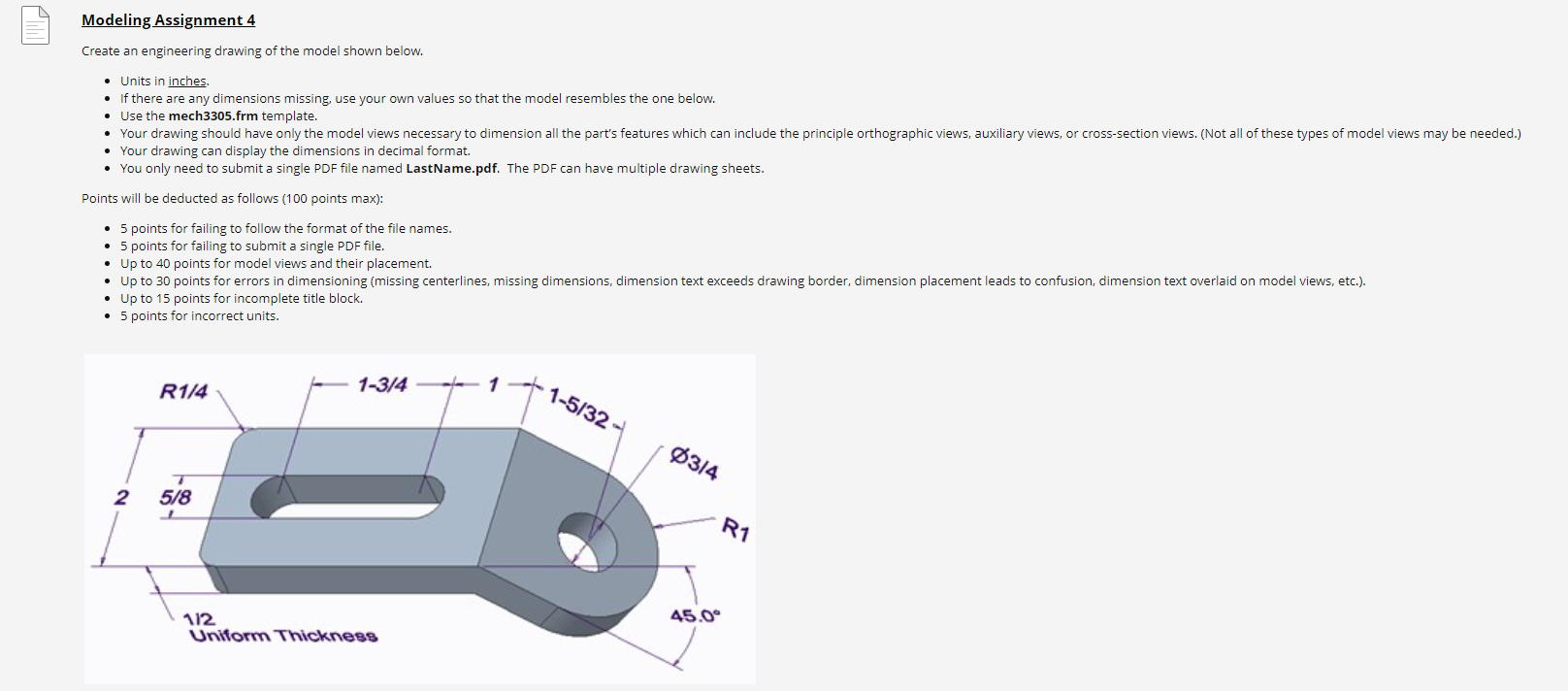

Modeling Assignment 4 Create an engineering drawing of the model shown below. • Units in inches. • If there are any dimensions missing, use your own values so that the model resembles the one below. • Use the mech3305.frm template. • Your drawing should have only the model views necessary to dimension all the part's features which can include the principle orthographic views, auxiliary views, or cross-section views. (Not all of these types of model views may be needed.) • Your drawing can display the dimensions in decimal format. • You only need to submit a single PDF file named LastName.pdf. The PDF can have multiple drawing sheets. Points will be deducted as follows (100 points max): • 5 points for failing to follow the format of the file names. • 5 points for failing to submit a single PDF file. • Up to 40 points for model views and their placement. • Up to 30 points for errors in dimensioning (missing centerlines, missing dimensions, dimension text exceeds drawing border, dimension placement leads to confusion, dimension text overlaid on model views, etc.). Up to 15 points for incomplete title block. • • 5 points for incorrect units. 2 R1/4 5/8 I 1-3/4 112 Uniform Thickness 1 1-5/32- 0314 45.0° R1
