Q5(1). The bent solid rod with a diameter of 3 in. is fixed-support at point A. The length is /= 3.1 ft. It is subjected

[answerhappygod]

Q5 1 The Bent Solid Rod With A Diameter Of 3 In Is Fixed Support At Point A The Length Is 3 1 Ft It Is Subjected 1 (43.75 KiB) Viewed 20 times

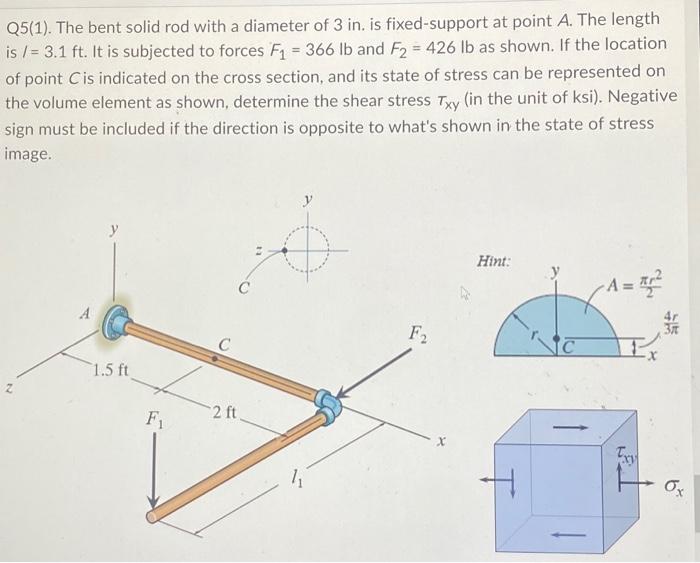

Q5(1). The bent solid rod with a diameter of 3 in. is fixed-support at point A. The length is /= 3.1 ft. It is subjected to forces F₁ = 366 lb and F2 = 426 lb as shown. If the location of point Cis indicated on the cross section, and its state of stress can be represented on the volume element as shown, determine the shear stress Txy (in the unit of ksi). Negative sign must be included if the direction is opposite to what's shown in the state of stress image. y 1.5 ft F₁ C 2 ft 4 F2 Hint: 1 -A=4²2 Txy 455
