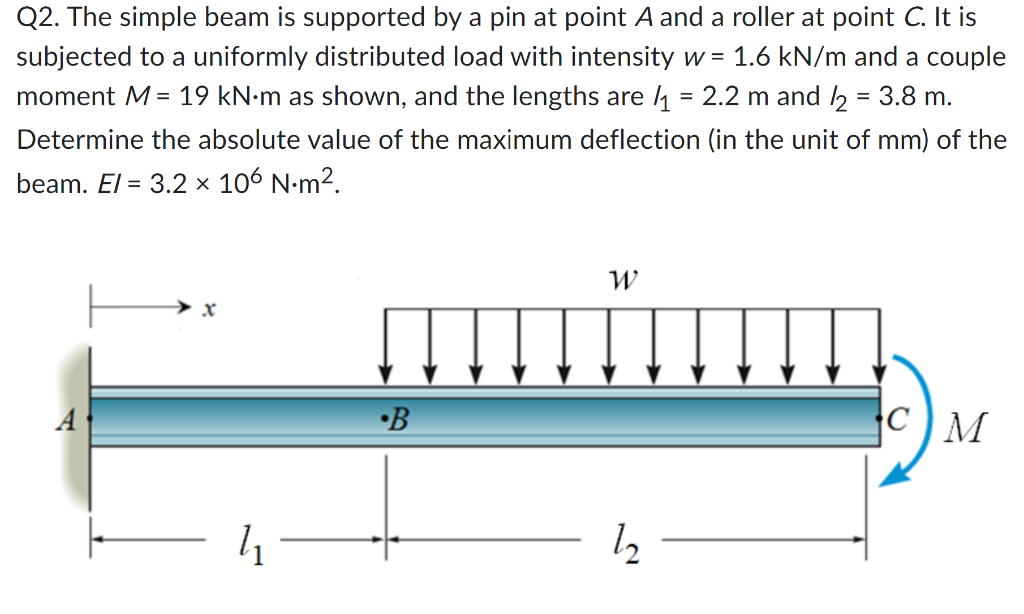

Q2. The simple beam is supported by a pin at point A and a roller at point C. It is subjected to a uniformly distributed load with intensity w = 1.6 kN/m and a couple moment M = 19 kN·m as shown, and the lengths are ₁ = 2.2 m and /2 = 3.8 m. Determine the absolute value of the maximum deflection (in the unit of mm) of the beam. El = 3.2 × 106 N.m². A 4 •B W 12 CM
