Q4. The pin-connected frame is subjected to the force Fas shown. The dimensions are ₁ = 3.8 m, /2 = 2.8 m, and angle 0 =
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Q4. The pin-connected frame is subjected to the force Fas shown. The dimensions are ₁ = 3.8 m, /2 = 2.8 m, and angle 0 =

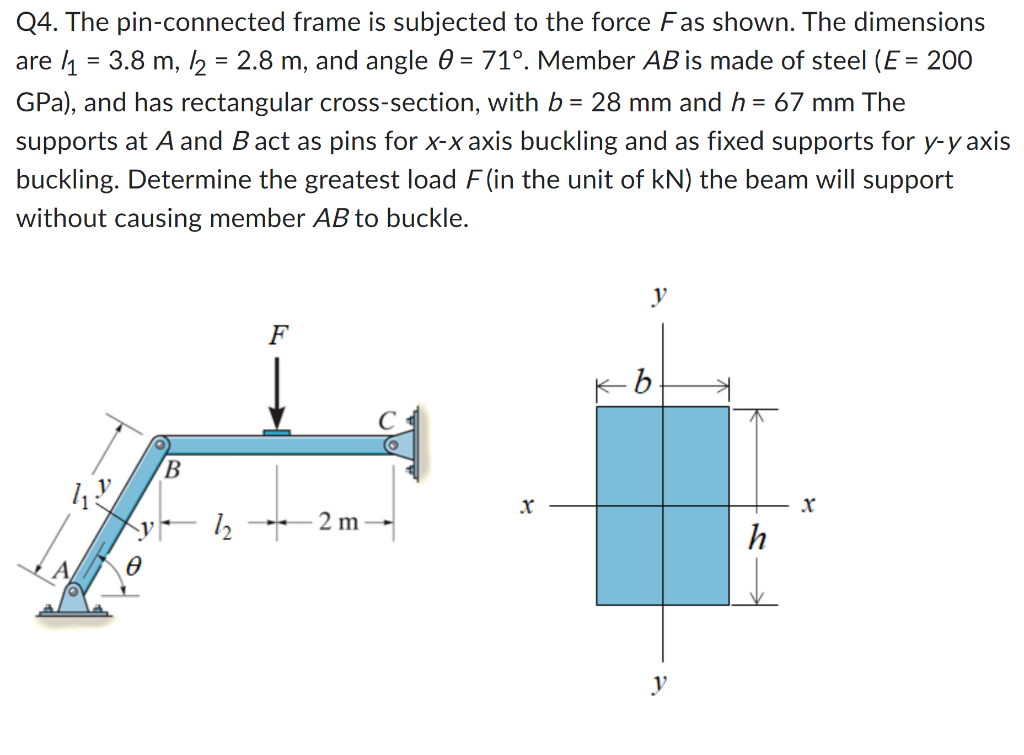

Q4. The pin-connected frame is subjected to the force Fas shown. The dimensions are ₁ = 3.8 m, /2 = 2.8 m, and angle 0 = 71°. Member AB is made of steel (E = 200 GPa), and has rectangular cross-section, with b = 28 mm and h = 67 mm The supports at A and B act as pins for x-x axis buckling and as fixed supports for y-y axis buckling. Determine the greatest load F(in the unit of kN) the beam will support without causing member AB to buckle. A 42 B <y+ Ꮎ 12 F 2 m (O 2 y b h X
