Please provide a detail solution in simulink
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Please provide a detail solution in simulink
Please provide a detail solution in simulink

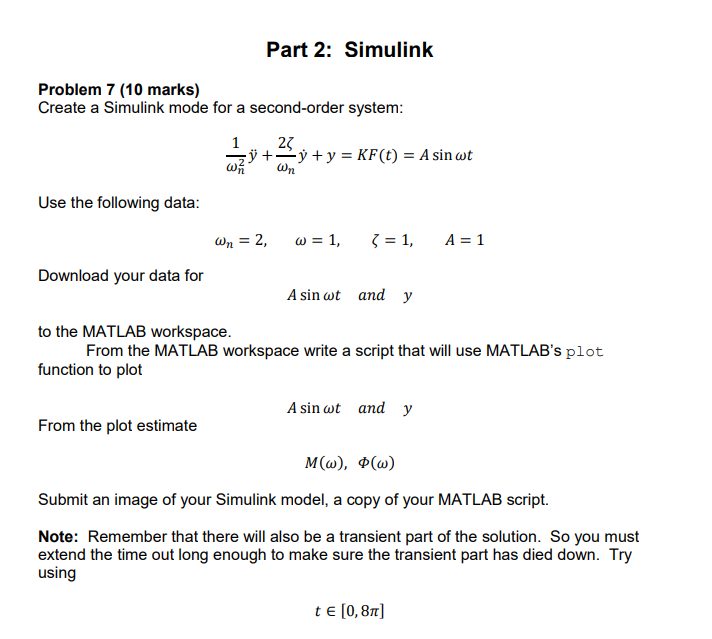

Problem 7 (10 marks) Create a Simulink mode for a second-order system: Use the following data: Download your data for Part 2: Simulink w From the plot estimate ÿ + Wn = 2, 23 -ý +y = KF(t) = A sin wt Wn w = 1, 3 = 1, A = 1 A sin wt and y to the MATLAB workspace. From the MATLAB workspace write a script that will use MATLAB's plot function to plot A sin wt and y M(w), Þ(w) Submit an image of your Simulink model, a copy of your MATLAB script. Note: Remember that there will also be a transient part of the solution. So you must extend the time out long enough to make sure the transient part has died down. Try using t € [0,8π]
Problem 7 (10 marks) Create a Simulink mode for a second-order system: Use the following data: Download your data for Part 2: Simulink w From the plot estimate ÿ + Wn = 2, 23 -ý +y = KF(t) = A sin wt Wn w = 1, 3 = 1, A = 1 A sin wt and y to the MATLAB workspace. From the MATLAB workspace write a script that will use MATLAB's plot function to plot A sin wt and y M(w), Þ(w) Submit an image of your Simulink model, a copy of your MATLAB script. Note: Remember that there will also be a transient part of the solution. So you must extend the time out long enough to make sure the transient part has died down. Try using t € [0,8π]
