A Determine the load P required to hold the bar AB in a horizontal position on the smooth inclines shown. Also determine

Post by answerhappygod »

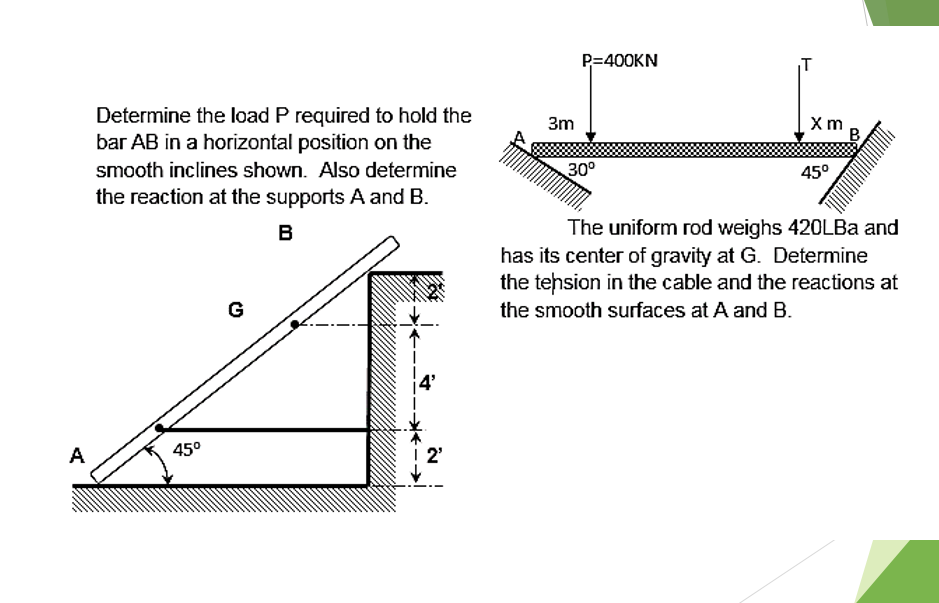

A Determine The Load P Required To Hold The Bar Ab In A Horizontal Position On The Smooth Inclines Shown Also Determine 1
A Determine The Load P Required To Hold The Bar Ab In A Horizontal Position On The Smooth Inclines Shown Also Determine 1 (140.36 KiB) Viewed 25 times
A Determine the load P required to hold the bar AB in a horizontal position on the smooth inclines shown. Also determine the reaction at the supports A and B. B 45° G 2' 3m P=400KN 30⁰ xm 45⁰ B The uniform rod weighs 420LBa and has its center of gravity at G. Determine the tension in the cable and the reactions at the smooth surfaces at A and B.
