A wheel of outside diameter 56.0 cm and hub diameter 30.0 cm is rolling at 2.40 m/s up a 10.0° incline. A rigid member A
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A wheel of outside diameter 56.0 cm and hub diameter 30.0 cm is rolling at 2.40 m/s up a 10.0° incline. A rigid member A

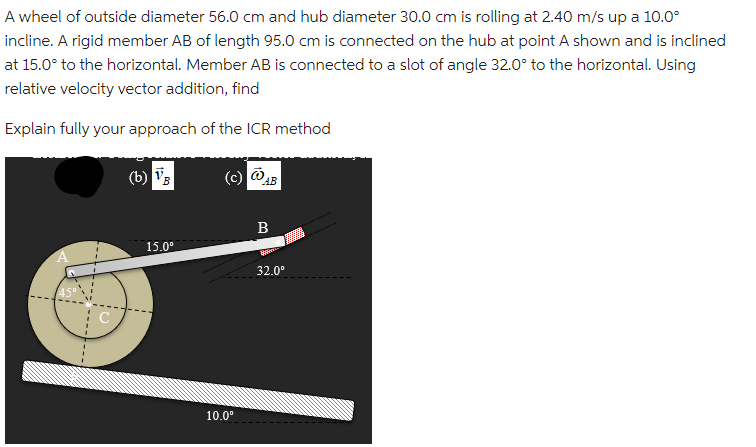

A wheel of outside diameter 56.0 cm and hub diameter 30.0 cm is rolling at 2.40 m/s up a 10.0° incline. A rigid member AB of length 95.0 cm is connected on the hub at point A shown and is inclined at 15.0° to the horizontal. Member AB is connected to a slot of angle 32.0° to the horizontal. Using relative velocity vector addition, find Explain fully your approach of the ICR method (c) @AB 45° C (b) VB 15.0⁰ 10.0⁰ B BRY 32.0⁰
