1 0/1 point A cantilevered stepped circular shaft is made of steel with an ultimate strength of Su. The shaft is machine

Post by answerhappygod »

1 0 1 Point A Cantilevered Stepped Circular Shaft Is Made Of Steel With An Ultimate Strength Of Su The Shaft Is Machine 1
1 0 1 Point A Cantilevered Stepped Circular Shaft Is Made Of Steel With An Ultimate Strength Of Su The Shaft Is Machine 1 (587.41 KiB) Viewed 21 times

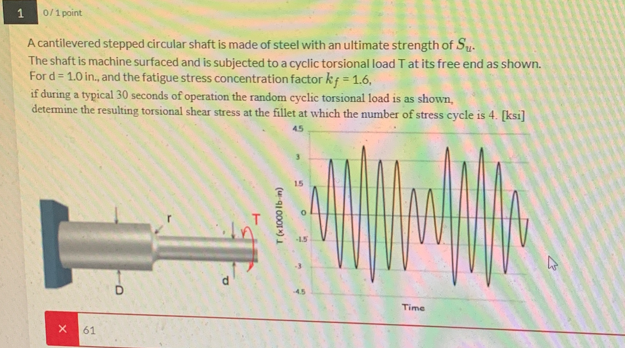

1 0/1 point A cantilevered stepped circular shaft is made of steel with an ultimate strength of Su. The shaft is machine surfaced and is subjected to a cyclic torsional load T at its free end as shown. For d=1.0 in., and the fatigue stress concentration factor kf = 1.6, if during a typical 30 seconds of operation the random cyclic torsional load is as shown, determine the resulting torsional shear stress at the fillet at which the number of stress cycle is 4. [ksi] X 61 d T (x1000 lb-in) 15 -1.5 Time
