4.7 An incident shock wave with wave angle = 30° impinges on a straight wall. If the upstream flow properties are M₁ = 2

Post by answerhappygod »

4 7 An Incident Shock Wave With Wave Angle 30 Impinges On A Straight Wall If The Upstream Flow Properties Are M 2 1
4 7 An Incident Shock Wave With Wave Angle 30 Impinges On A Straight Wall If The Upstream Flow Properties Are M 2 1 (163.89 KiB) Viewed 30 times

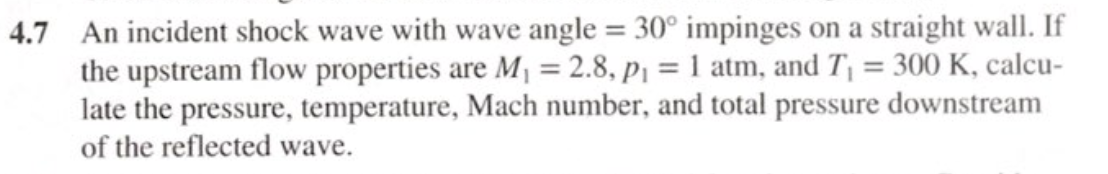

4.7 An incident shock wave with wave angle = 30° impinges on a straight wall. If the upstream flow properties are M₁ = 2.8, p₁ = 1 atm, and T₁ = 300 K, calcu- late the pressure, temperature, Mach number, and total pressure downstream of the reflected wave.
