Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to t

Post by **answerhappygod** » Mon Jul 11, 2022 10:05 am

: Required Information Note This Is A Multi Part Question Once An Answer Is Submitted You Will Be Unable To Return To T 1 (157.97 KiB) Viewed 33 times

Please note where P is at, I know there are similar questions onChegg but they have P and Q in a different spot. Thank you.

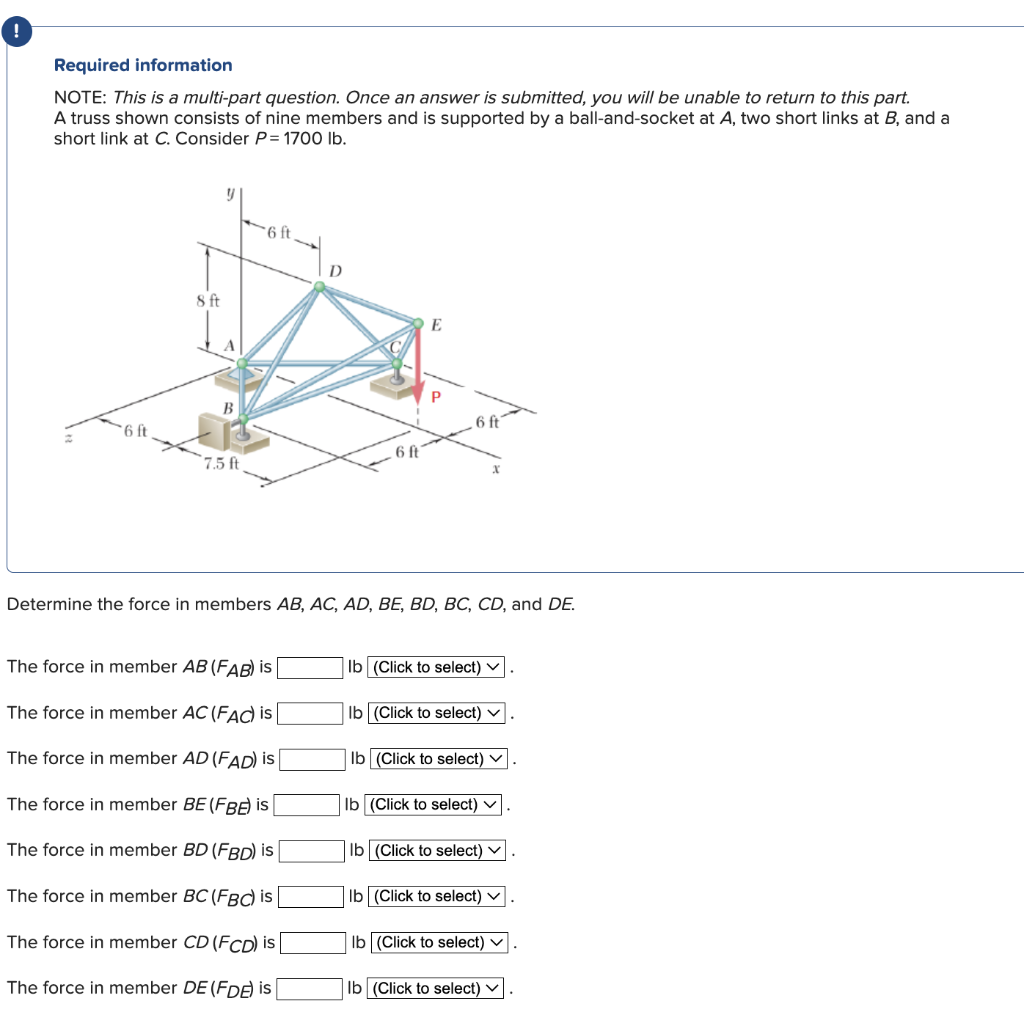

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A truss shown consists of nine members and is supported by a ball-and-socket at A, two short links at B, and a short link at C. Consider P= 1700 lb. 8 ft y B 7.5 ft. 6 ft The force in member AB (FAB) is The force in member AC (FAC) is The force in member AD (FAD) is The force in member BE (FBE) is The force in member BD (FBD) is The force in member BC (FBC) is The force in member CD (FCD) is The force in member DE (FDE) is E 6 ft Determine the force in members AB, AC, AD, BE, BD, BC, CD, and DE. lb (Click to select) lb (Click to select) ✓ lb (Click to select) lb (Click to select) lb (Click to select) lb (Click to select) lb (Click to select) ✓ lb (Click to select)
