81 "F P₁-9.3 pig V₁-38 201 Da Tutine G P, 43 psgp 62.42/ V, 40 ft/s; D, 4 An adiabatic hydraulic turbine generator have

[answerhappygod]

81 F P 9 3 Pig V 38 201 Da Tutine G P 43 Psgp 62 42 V 40 Ft S D 4 An Adiabatic Hydraulic Turbine Generator Have 1 (19.88 KiB) Viewed 15 times

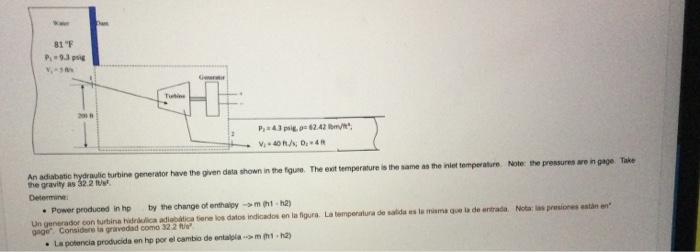

81 "F P₁-9.3 pig V₁-38 201 Da Tutine G P, 43 psgp 62.42/ V, 40 ft/s; D, 4 An adiabatic hydraulic turbine generator have the given data shown in the figure. The exit temperature is the same as the inlet temperature Note: the pressures are in gage Take the gravity as 32.2 Determine Power produced in hp by the change of enthalpy -m (1-2) Un generador con turbina hidráulica adiabatica tiene los datos indicados en la figura. La temperatura de salida es la misma que la de entrada Nota: las presiones están en gage Considere la gravedad como 32.2 ft² La potencia producida en hp por el cambio de entalpiam (1 h)
