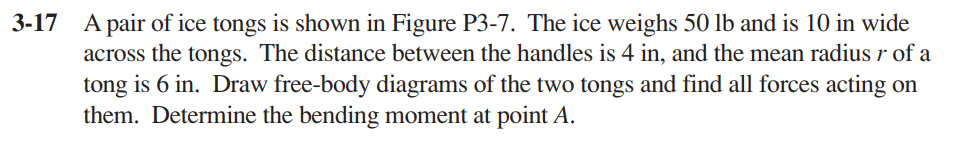

3-17 A pair of ice tongs is shown in Figure P3-7. The ice weighs 50 lb and is 10 in wide across the tongs. The distance between the handles is 4 in, and the mean radius r of a tong is 6 in. Draw free-body diagrams of the two tongs and find all forces acting on them. Determine the bending moment at point A.

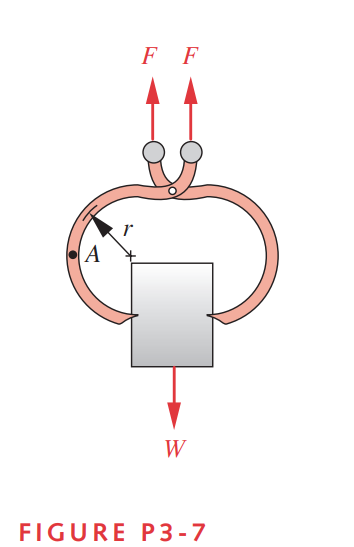

A F F W FIGURE P3-7
