1 P2 The force applied at point E causes point D to displace downward 20 mm. The wires are made with stainless steel and

[answerhappygod]

1 P2 The Force Applied At Point E Causes Point D To Displace Downward 20 Mm The Wires Are Made With Stainless Steel And 1 (34.29 KiB) Viewed 30 times

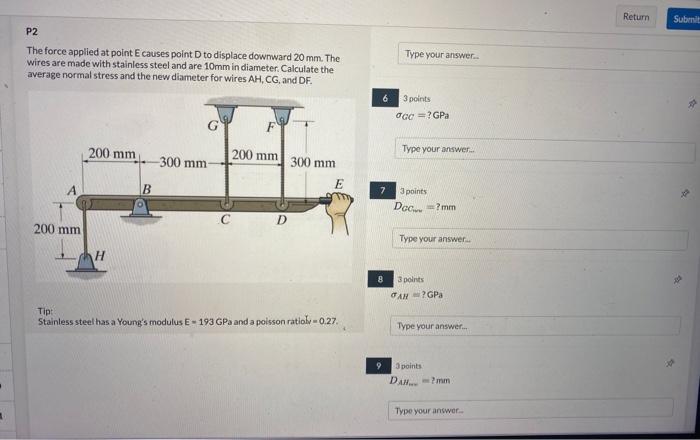

1 P2 The force applied at point E causes point D to displace downward 20 mm. The wires are made with stainless steel and are 10mm in diameter. Calculate the average normal stress and the new diameter for wires AH, CG, and DF. 200 mm 200 mm H B -300 mm- C 200 mm D 300 mm E Tip: Stainless steel has a Young's modulus E-193 GPa and a poisson ratiol-0.27. 6 8 Type your answer... 3 points Gc=?GPa Type your answer.... 3 points Dec?mm Type your answer..... 3 points AN=?GPa Type your answer.... 3 points DAH.2mm. Type your answer..... Return Submit JON
