Photobromination of Toluene Procedure: 500 mL of toluene was added to a 2 liter beaker and equipped with a magnetic stir

[answerhappygod]

Photobromination Of Toluene Procedure 500 Ml Of Toluene Was Added To A 2 Liter Beaker And Equipped With A Magnetic Stir 1 (110.47 KiB) Viewed 39 times

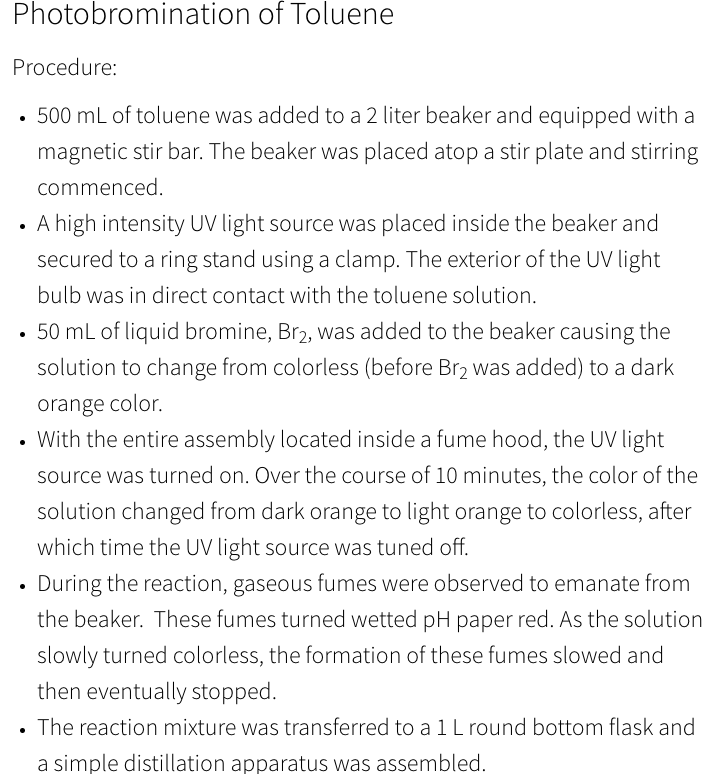

Photobromination of Toluene Procedure: 500 mL of toluene was added to a 2 liter beaker and equipped with a magnetic stir bar. The beaker was placed atop a stir plate and stirring commenced. . A high intensity UV light source was placed inside the beaker and secured to a ring stand using a clamp. The exterior of the UV light bulb was in direct contact with the toluene solution. • 50 mL of liquid bromine, Br₂, was added to the beaker causing the solution to change from colorless (before Br2 was added) to a dark orange color. With the entire assembly located inside a fume hood, the UV light source was turned on. Over the course of 10 minutes, the color of the solution changed from dark orange to light orange to colorless, after which time the UV light source was tuned off. During the reaction, gaseous fumes were observed to emanate from the beaker. These fumes turned wetted pH paper red. As the solution slowly turned colorless, the formation of these fumes slowed and then eventually stopped. . The reaction mixture was transferred to a 1 L round bottom flask and a simple distillation apparatus was assembled.
• The reaction mixture was distilled resulting in the collection of two separate fractions. Approximately 400 mL of distillate number 1 was collected at 110-111 °C while 100.1 mL of distillate number 2 was collected at 197-198 °C. . Both fractions collected by distillation were analyzed (separately) by IR spectroscopy, ¹H NMR spectroscopy and ¹3C NMR spectroscopy.
Look carefully at the mass spectra shown below. Which one corresponds to the photobromination product of this reaction? Relative Intensity Relative intensity c U O 100- O 80- 60- 20- 0 100- 80- 60- 20- B D A A 50 C 100 75 150 m/z 200 dompromette queremed 100 125 m/z 150 250 175 Relative Intensity 100- 80- Relative Intensity 20- 0 100- 8 40- 20 B 20 25 D 50 یمیل هایدید 40 75 100 100 120 m/z 125 140 160 wwwywabby 150 175 180 200
