Problem 2 (20) a) (10) For water at 4.758 bar and 0.1969 m³/kg, find u in kJ/kg. Locate this state point on a T-v diagra

[answerhappygod]

Problem 2 20 A 10 For Water At 4 758 Bar And 0 1969 M Kg Find U In Kj Kg Locate This State Point On A T V Diagra 1 (36.07 KiB) Viewed 27 times

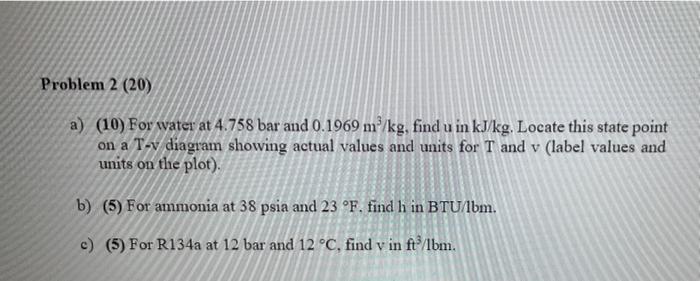

Problem 2 (20) a) (10) For water at 4.758 bar and 0.1969 m³/kg, find u in kJ/kg. Locate this state point on a T-v diagram showing actual values and units for T and v (label values and units on the plot). b) (5) For ammonia at 38 psia and 23 °F. find h in BTU/lbm. c) (5) For R134a at 12 bar and 12 °C, find v in ft³/lbm.
