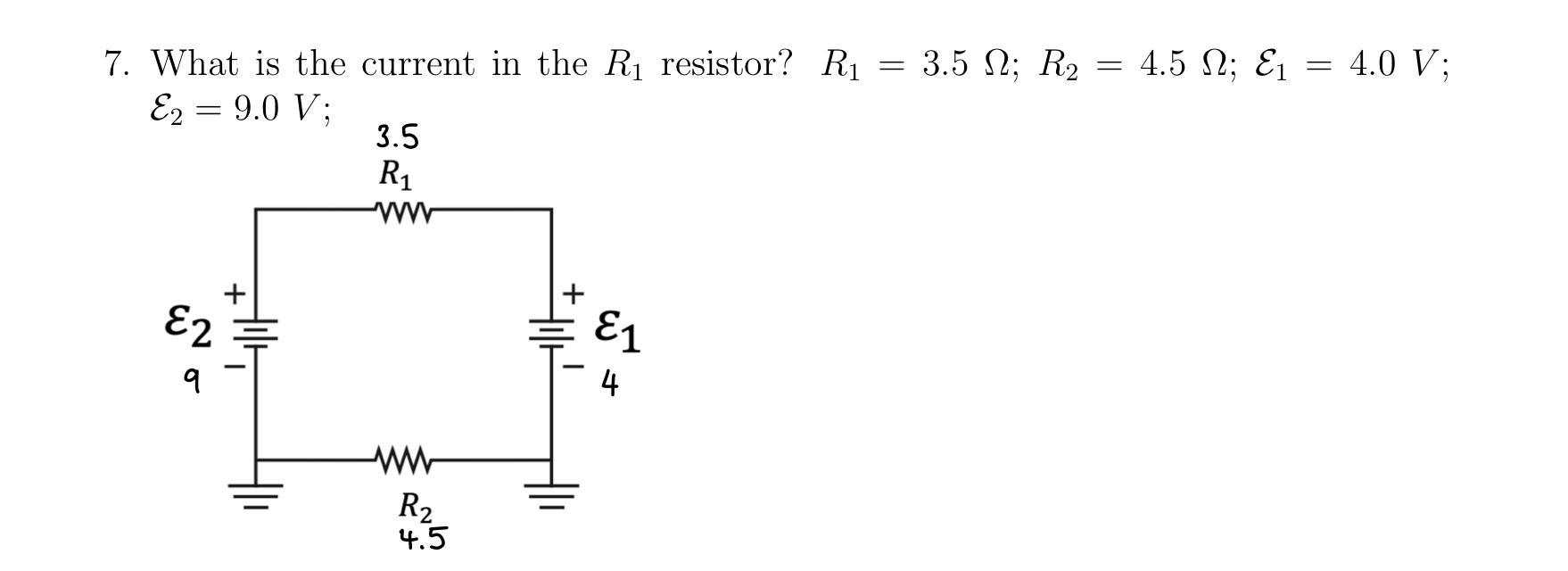

7. What is the current in the R₁ resistor? R₁ E₂ = 9.0 V; E2 + I 3.5 R₁ R₂ 4.5 - E1 = 3.5 Ω; R2 = 4.5 N; E₁ = 4.0 V;

Post by answerhappygod »

1
1 (43.01 KiB) Viewed 44 times
7. What is the current in the R₁ resistor? R₁ E₂ = 9.0 V; E2 + I 3.5 R₁ R₂ 4.5 - E1 = 3.5 Ω; R2 = 4.5 N; E₁ = 4.0 V;
