Problem 13 1 point possible (graded) N left 13 Ө Submit 1₁ A parallelepiped is in an electric field which, to the left o

[answerhappygod]

1 (55.29 KiB) Viewed 44 times

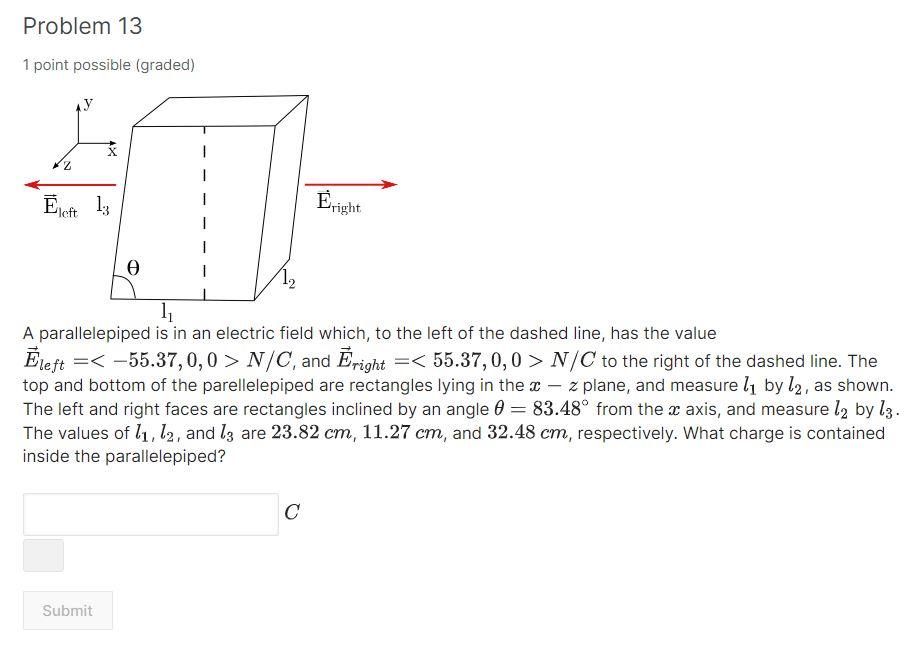

Problem 13 1 point possible (graded) N left 13 Ө Submit 1₁ A parallelepiped is in an electric field which, to the left of the dashed line, has the value Eright Eleft =< -55.37,0,0> N/C, and Eright =< 55.37,0,0> N/C to the right of the dashed line. The top and bottom of the parellelepiped are rectangles lying in the x - z plane, and measure l₁ by l2, as shown. The left and right faces are rectangles inclined by an angle = 83.48° from the x axis, and measure 12 by 13. The values of 11, 12, and 13 are 23.82 cm, 11.27 cm, and 32.48 cm, respectively. What charge is contained inside the parallelepiped? C
