2. A uniform, solid disk of radius R is attached with a large pin to the horizontal table at point C (the center of the

[answerhappygod]

2 A Uniform Solid Disk Of Radius R Is Attached With A Large Pin To The Horizontal Table At Point C The Center Of The 1 (45.4 KiB) Viewed 37 times

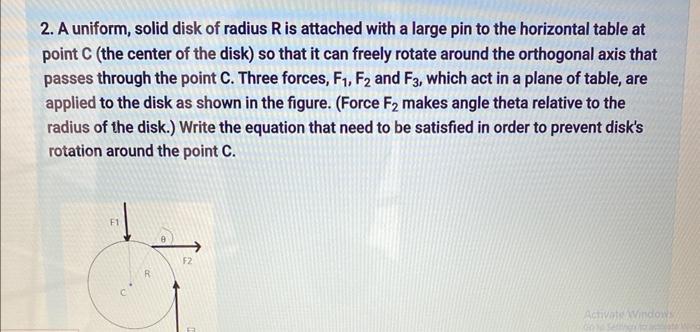

2. A uniform, solid disk of radius R is attached with a large pin to the horizontal table at point C (the center of the disk) so that it can freely rotate around the orthogonal axis that passes through the point C. Three forces, F₁, F2 and F3, which act in a plane of table, are applied to the disk as shown in the figure. (Force F₂ makes angle theta relative to the radius of the disk.) Write the equation that need to be satisfied in order to prevent disk's rotation around the point C. F1 R 0 F2 Activate Windows
