Sphere in a Wedge Points: 20 A sphere of mass 11.3 kg rests in a groove, as shown in the figure below. The angle between

Post by answerhappygod »

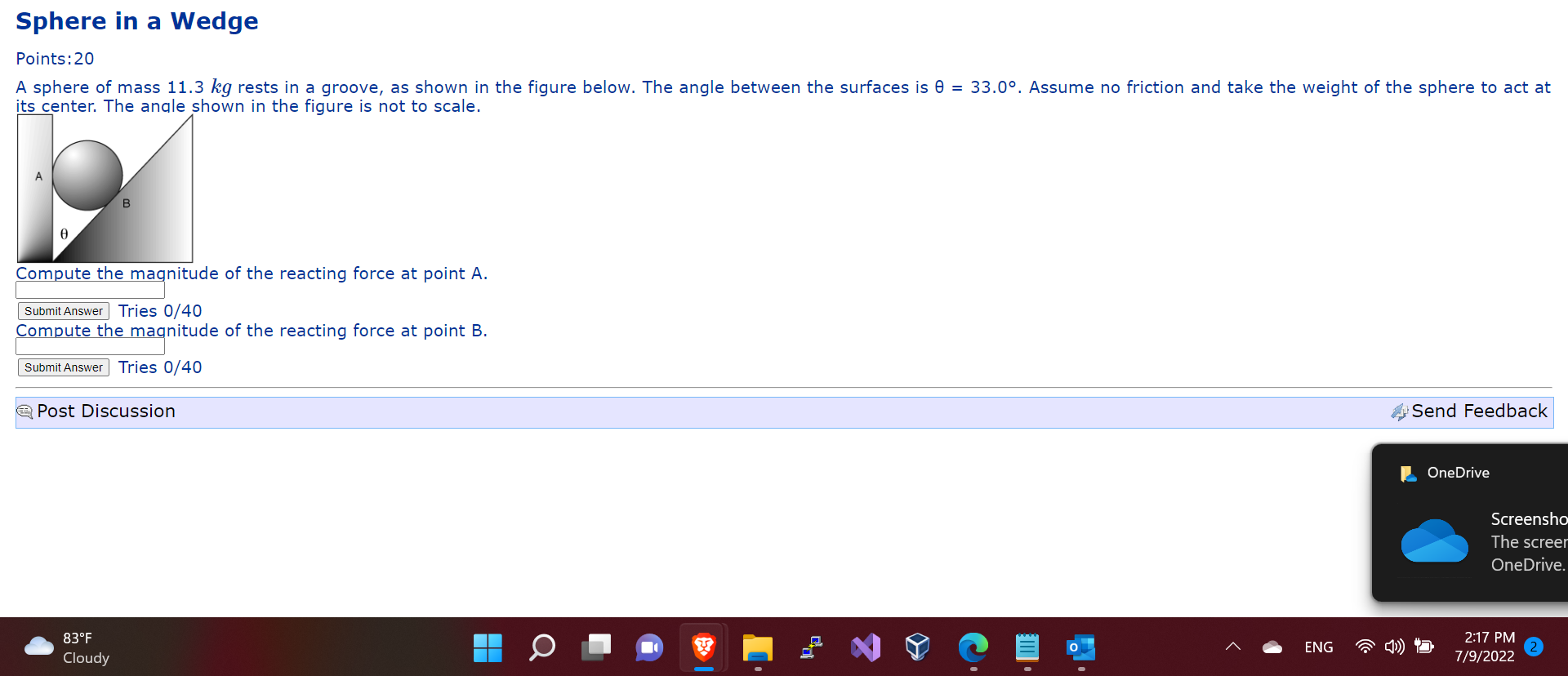

Sphere In A Wedge Points 20 A Sphere Of Mass 11 3 Kg Rests In A Groove As Shown In The Figure Below The Angle Between 1
Sphere In A Wedge Points 20 A Sphere Of Mass 11 3 Kg Rests In A Groove As Shown In The Figure Below The Angle Between 1 (206.87 KiB) Viewed 29 times
Sphere in a Wedge Points: 20 A sphere of mass 11.3 kg rests in a groove, as shown in the figure below. The angle between the surfaces is 0 = 33.0°. Assume no friction and take the weight of the sphere to act at its center. The angle shown in the figure is not to scale. 0 B Compute the magnitude of the reacting force at point A. Submit Answer Tries 0/40 Compute the magnitude of the reacting force at point B. Submit Answer Tries 0/40 Post Discussion 83°F Cloudy ENG Send Feedback OneDrive Screensho The screer OneDrive. 2:17 PM 7/9/2022
