A car FIGURE 4 is traveling around a curve at a constant speed as shown below: A. B. Figure 4 5.1 Which vector shows the

[answerhappygod]

A Car Figure 4 Is Traveling Around A Curve At A Constant Speed As Shown Below A B Figure 4 5 1 Which Vector Shows The 1 (50.78 KiB) Viewed 73 times

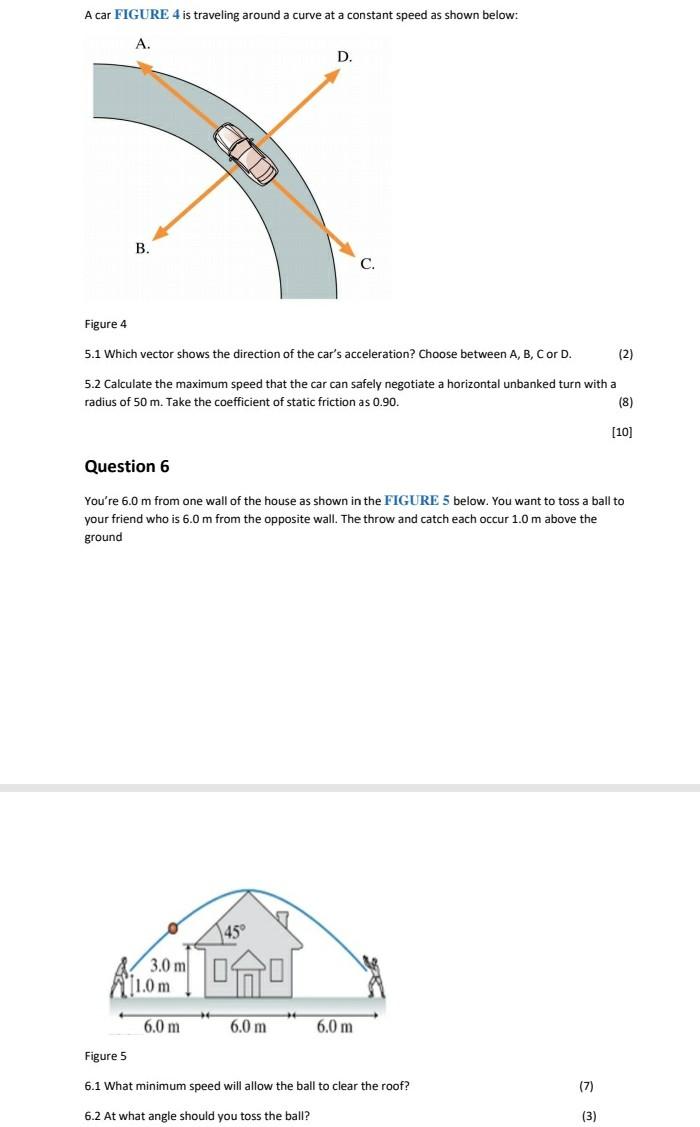

A car FIGURE 4 is traveling around a curve at a constant speed as shown below: A. B. Figure 4 5.1 Which vector shows the direction of the car's acceleration? Choose between A, B, C or D. 5.2 Calculate the maximum speed that the car can safely negotiate a horizontal unbanked turn with a radius of 50 m. Take the coefficient of static friction as 0.90. (8) 3.0 m Question 6 You're 6.0 m from one wall of the house as shown in the FIGURE 5 below. You want to toss a ball to your friend who is 6.0 m from the opposite wall. The throw and catch each occur 1.0 m above the ground ALLOO 1.0 m D. 45° 6.0 m 6.0 m 6.0 m Figure 5 6.1 What minimum speed will allow the ball to clear the roof? 6.2 At what angle should you toss the ball? (2) (7) (3) [10]
