QUESTION 3 Figure Q3 shows water is flowing upward at a rate of 0.1 m³/s through a 300 mm diameter pipe. The pipe diamet

Post by answerhappygod »

Question 3 Figure Q3 Shows Water Is Flowing Upward At A Rate Of 0 1 M S Through A 300 Mm Diameter Pipe The Pipe Diamet 1
Question 3 Figure Q3 Shows Water Is Flowing Upward At A Rate Of 0 1 M S Through A 300 Mm Diameter Pipe The Pipe Diamet 1 (165.65 KiB) Viewed 43 times

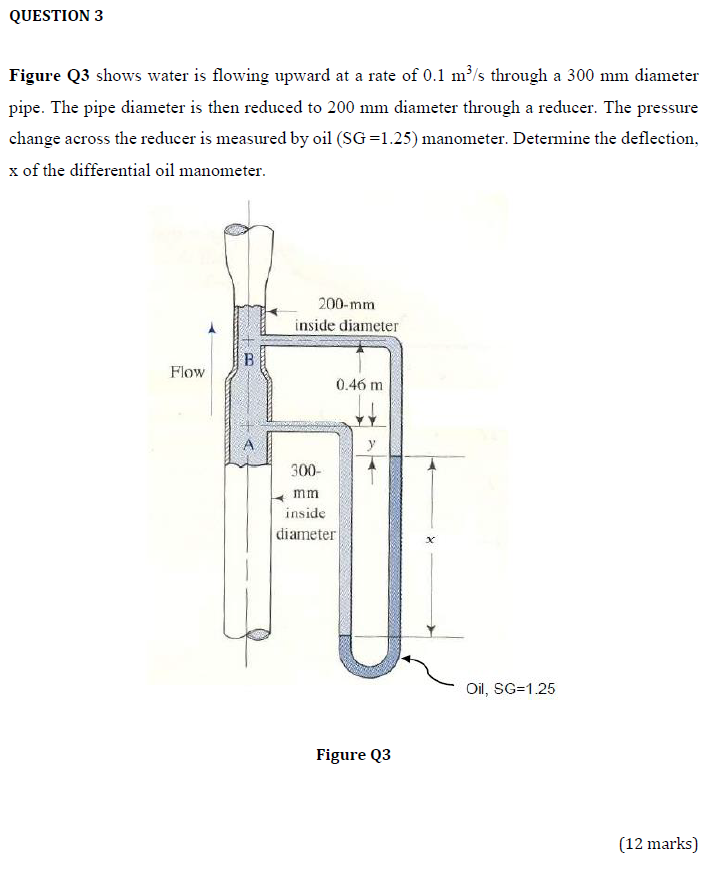

QUESTION 3 Figure Q3 shows water is flowing upward at a rate of 0.1 m³/s through a 300 mm diameter pipe. The pipe diameter is then reduced to 200 mm diameter through a reducer. The pressure change across the reducer is measured by oil (SG =1.25) manometer. Determine the deflection, x of the differential oil manometer. Flow B 200-mm inside diameter 0.46 m 300- mm inside diameter y Figure Q3 x Oil, SG=1.25 (12 marks)
