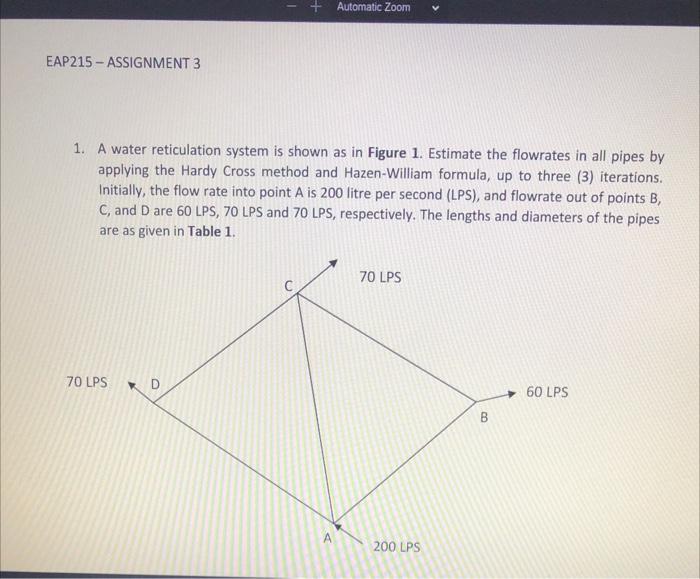

EAP215-ASSIGNMENT 3 1. A water reticulation system is shown as in Figure 1. Estimate the flowrates in all pipes by applying the Hardy Cross method and Hazen-William formula, up to three (3) iterations. Initially, the flow rate into point A is 200 litre per second (LPS), and flowrate out of points B, C, and D are 60 LPS, 70 LPS and 70 LPS, respectively. The lengths and diameters of the pipes are as given in Table 1. 70 LPS + Automatic Zoom D P 70 LPS 200 LPS B 60 LPS

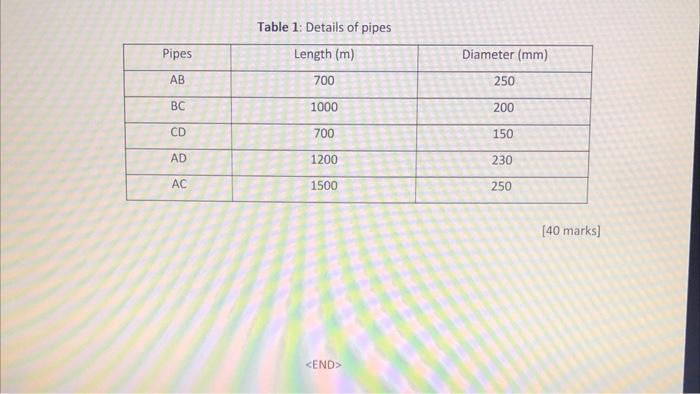

Pipes AB BC CD AD AC Table 1: Details of pipes Length (m) 700 1000 700 1200 1500 <END> Diameter (mm) 250 200 150 230 250 [40 marks]
