Problem 1. Use virtual work method and determine the following unknowns on the frame shown below. Use I = 800 x 10 mm* a

[answerhappygod]

Problem 1 Use Virtual Work Method And Determine The Following Unknowns On The Frame Shown Below Use I 800 X 10 Mm A 1 (28.15 KiB) Viewed 38 times

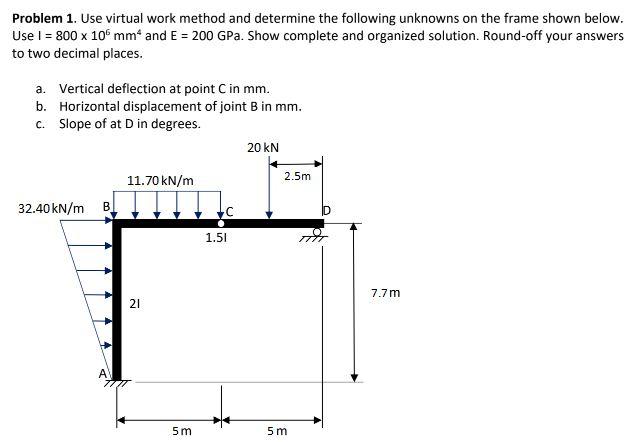

Problem 1. Use virtual work method and determine the following unknowns on the frame shown below. Use I = 800 x 10 mm* and E = 200 GPa. Show complete and organized solution. Round-off your answers to two decimal places. a. Vertical deflection at point C in mm. b. Horizontal displacement of joint B in mm. c. Slope of at D in degrees. 32.40 kN/m B 11.70 kN/m 21 5m 1.51 * 20 kN 2.5m 5m O 7.7m
