Problem 4.72 The two cylindrical rod segments shown in the figure below (Figure 1) are fixed to the rigid walls such tha

[answerhappygod]

Problem 4 72 The Two Cylindrical Rod Segments Shown In The Figure Below Figure 1 Are Fixed To The Rigid Walls Such Tha 1 (47.3 KiB) Viewed 52 times

Problem 4 72 The Two Cylindrical Rod Segments Shown In The Figure Below Figure 1 Are Fixed To The Rigid Walls Such Tha 2 (62.52 KiB) Viewed 52 times

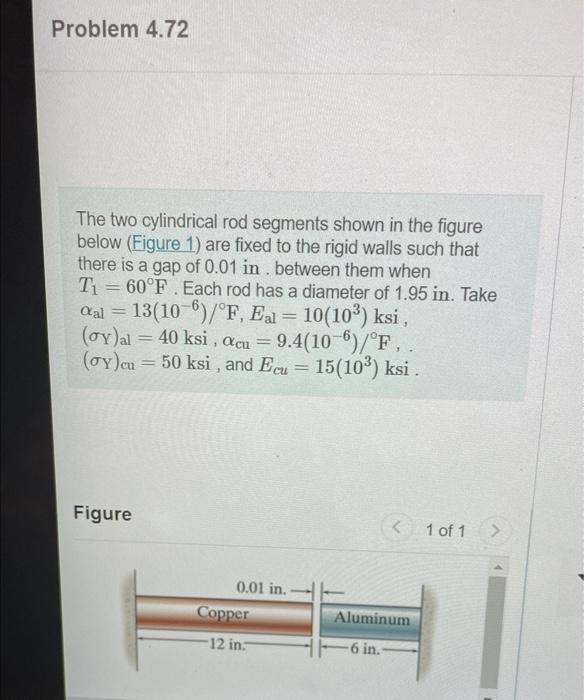

Problem 4.72 The two cylindrical rod segments shown in the figure below (Figure 1) are fixed to the rigid walls such that there is a gap of 0.01 in between them when T₁ = 60°F. Each rod has a diameter of 1.95 in. Take Qal = 13(10-6)/°F, Eal = 10(10³) ksi, (oy)al = 40 ksi, acu = 9.4(106)/°F, (Oy) cu = 50 ksi, and Ecu = 15(10³) ksi. Figure . 0.01 in. Copper 12 in < Aluminum -6 in.- 1 of 1 >

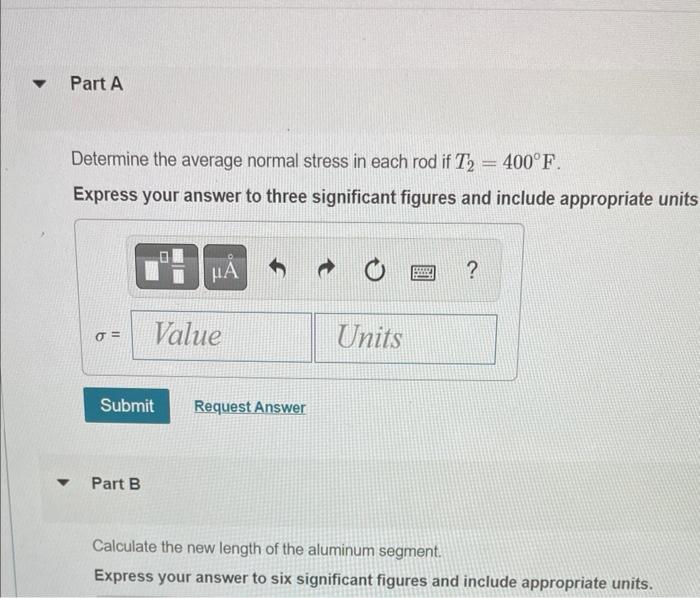

▼ ▼ Part A Determine the average normal stress in each rod if T2 = 400°F. Express your answer to three significant figures and include appropriate units σ= μA Part B Value Submit Request Answer Units www ? Calculate the new length of the aluminum segment. Express your answer to six significant figures and include appropriate units.
