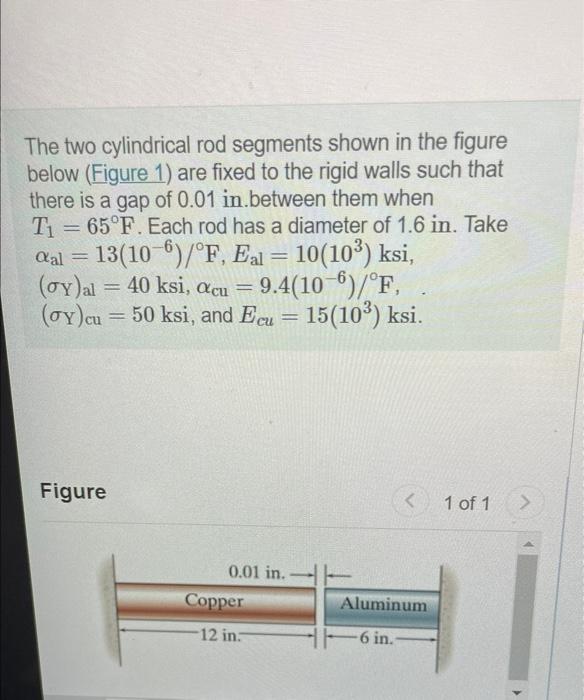

The two cylindrical rod segments shown in the figure below (Figure 1) are fixed to the rigid walls such that there is a gap of 0.01 in.between them when T₁ = 65°F. Each rod has a diameter of 1.6 in. Take Cal = 13(10-6)/°F, Eal = 10(10³) ksi, (oy) al = 40 ksi, acu = 9.4(10-6)/°F, (y) cu = 50 ksi, and Ecu = 15(10³) ksi. Figure 0.01 in. Copper 12 in < Aluminum -6 in. 1 of 1 >

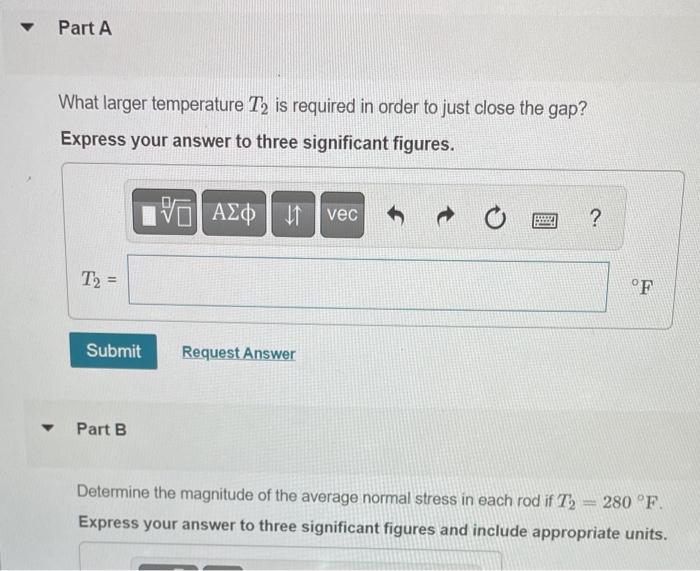

▼ ▼ Part A What larger temperature T2 is required in order to just close the gap? Express your answer to three significant figures. T2 = Submit Part B VO ΑΣΦ | | | vec Request Answer ? °F = 280 °F. Determine the magnitude of the average normal stress in each rod if T2 Express your answer to three significant figures and include appropriate units.
