Q. A rigid shallow foundation 1.25 m x 2.5 m is shown in Figure below. Calculate the elastic settlement of the foundatio
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Q. A rigid shallow foundation 1.25 m x 2.5 m is shown in Figure below. Calculate the elastic settlement of the foundatio

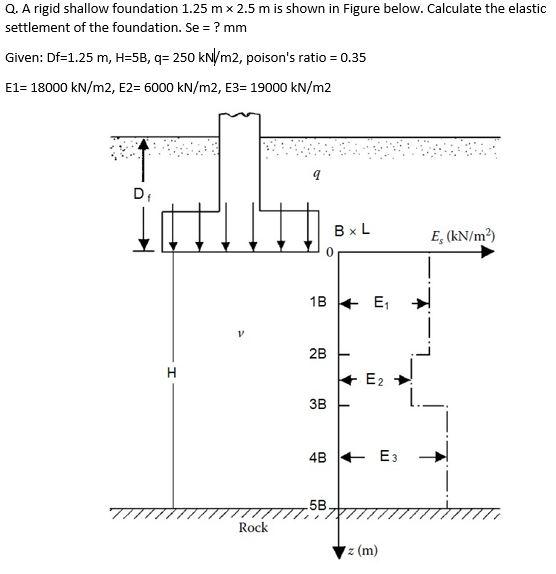

Q. A rigid shallow foundation 1.25 m x 2.5 m is shown in Figure below. Calculate the elastic settlement of the foundation. Se = ? mm Given: Df=1.25 m, H=5B, q=250 kN/m2, poison's ratio = 0.35 E1= 18000 kN/m2, E2= 6000 kN/m2, E3= 19000 kN/m2 D₁ Rock 1B E₁ 2B 3B BxL 5B. E₂ 4B E3 Iz (m) E, (kN/m²)
