A E 4' 5' 120 lb For the frame shown, determine: 4' B D 3 C 4'

Post by answerhappygod »

A E 4 5 120 Lb For The Frame Shown Determine 4 B D 3 C 4 1

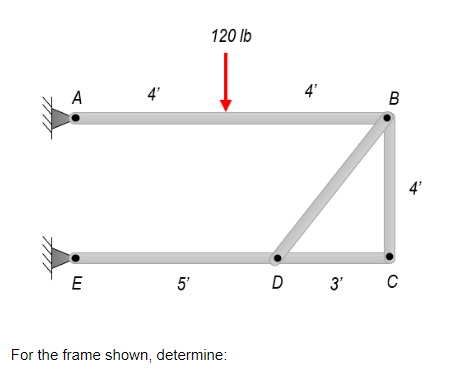

A E 4 5 120 Lb For The Frame Shown Determine 4 B D 3 C 4 1 (14.05 KiB) Viewed 47 times
Horizontal Component of the force at E, inlb
Vertical Component of the force at E, in lb
Horizontal Component of the force at A inlb
Vertical Component of the force at A inlb
Internal force at member BD, in lb
Internal force at member BC, in lb
A E 4' 5' 120 lb For the frame shown, determine: 4' B D 3 C 4'
