Find the internal forces of this trusses using any kind of method such as Joint Method or Pro Method. Kindly show your c

[answerhappygod]

Find The Internal Forces Of This Trusses Using Any Kind Of Method Such As Joint Method Or Pro Method Kindly Show Your C 1 (41.42 KiB) Viewed 32 times

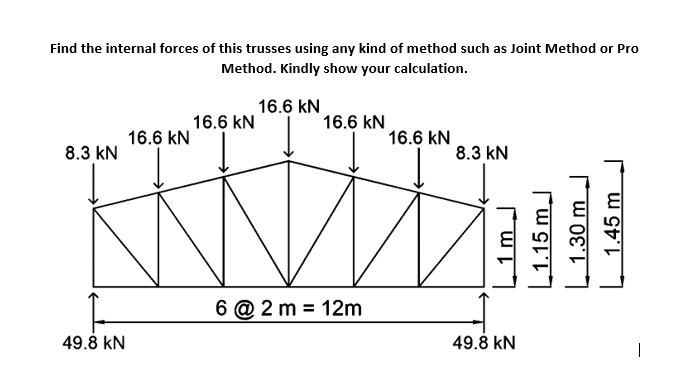

Find the internal forces of this trusses using any kind of method such as Joint Method or Pro Method. Kindly show your calculation. 8.3 kN 49.8 KN 16.6 KN 16.6 kN 16.6 kN 16.6 kN 6 @ 2 m = 12m 16.6 KN 8.3 kN 1 m 1.15 m 49.8 KN 1.30 m 1.45 m
